Brand: ERA SIB
Model: 306390-20-0142
| Dimensions | |
|---|---|
| Width | 26.50 |
| Height | 117.50 |
| Length | 55.00 |
£165.96
£576.42
Price Ex Vat: £138.30

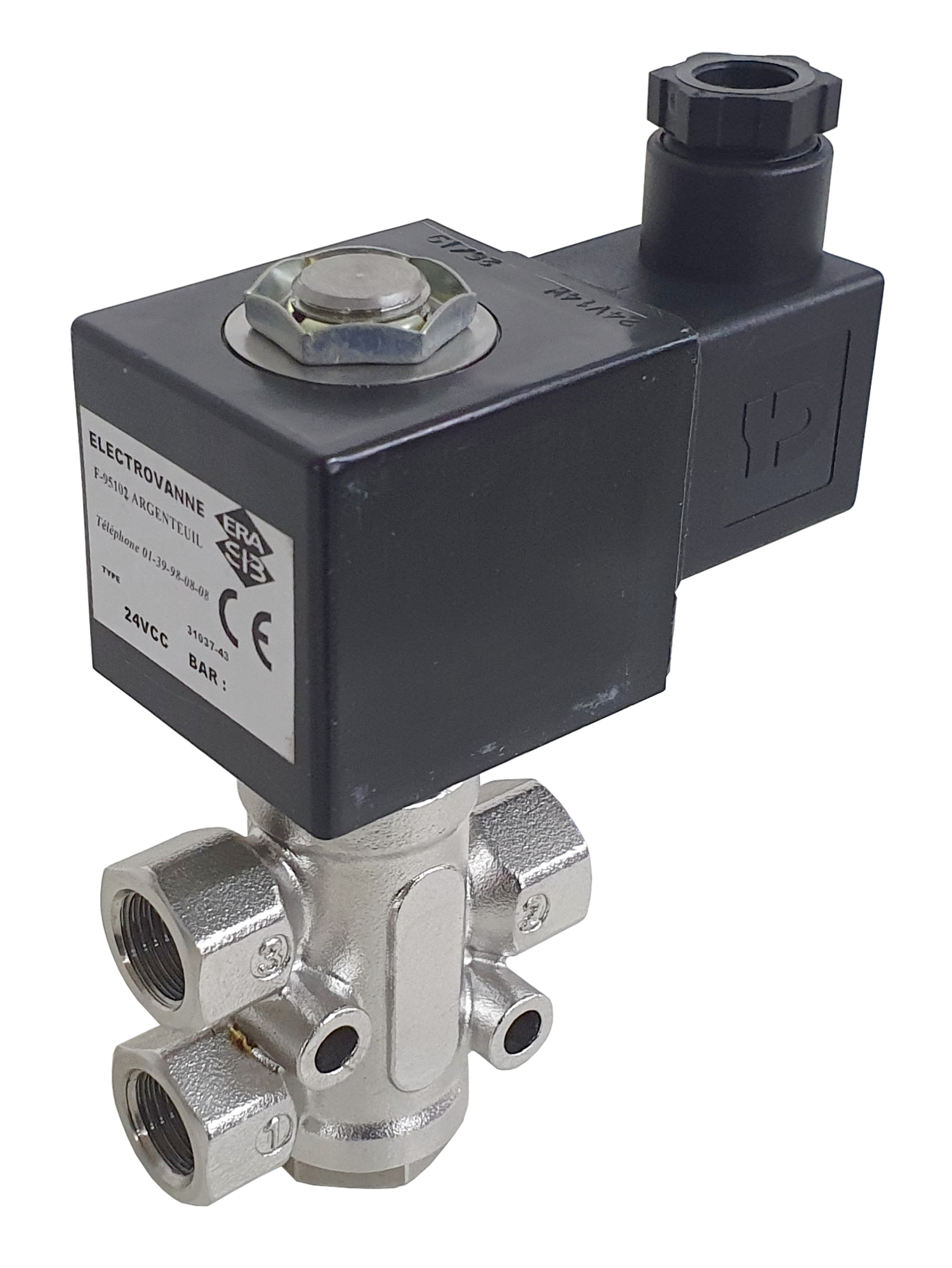

1/4 inch 3/2 way stainless steel Solenoid Valve 306390-0142
Function: 3/2 way universal
Operation: Direct acting
Port: 1/4 BSPP
Pressure: 0 to 10 Bar
Body: 316 stainless steel
Internals: Stainless steel
Sealing: FKM.
Media: compressed air or inert gases compatible with materials of construction. (Not vacuum or water)
Orifice: 6.0mm
Kv flow factor: 5.0 L/min based on water with 1 Bar pressure drop
Coil: 14 Watt DIN43650A Class F IP65 CE approved 100% duty rated.
Voltages: 12vDC, 24vDC, 48vDC or 24vAC, 48vAC, 110vAC or 230vAC (rectified to DC)
This 3 Port 2 Position Universal function solenoid valve can be piped to function 3 way normally closed, 3 way normally open or 3 way diverting.
Data sheet
