Description

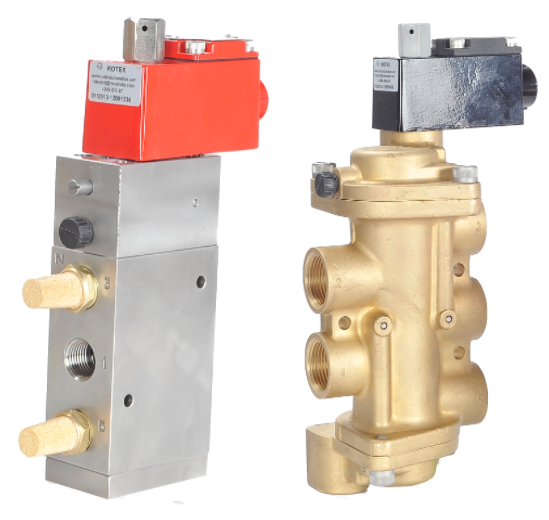

ATEX Ex ia 5/2 Solenoid valve intrinsically safe IP67 enclosure Rotex 51440A

Features:
Bubble tight shut off, vibration resistance to 9G, high speed cycle 1200/min, life expectancy >20 million cycles

Function: 5/2 mono stable
Operation: Internal Pilot (requires minimum 0.5 or 1 Bar pressure differential)
Port: 1/4 BSP, option NPT thread
Pressure: 2 to 10 Bar
Body: Aluminium, Brass or 316 stainless steel CF8
Internals: stainless steel
Shading Ring, Copper, Option silver or without.
Seals: NBR, Viton, EPDM or Fluorosilicone.
Media: air, water, gases or fluids compatible with materials of construction.
Orifice: 6mm
Kv flow factor: 14 L/min according to orifice based on water with 1 bar pressure drop.

Coil (III 14 with booster circuit): 2.3 watt IP67 Class H 24vDC.
Certificate: IECEx BAS 12.0128X - Issue 1: Basefa12ATEX0243X Issue 1.
Coil marking:
EX ia IIC T5, Ga (-60°C ≤ ta ≤75°C)
EX ia IIC T6, Ga (-60°C ≤ Ta ≤60°C)
EX ia IIIC T200 125°C IP67 Da (-60°C ≤ Ta ≤ 75°C)
Entity parameter: Ui 32vDC, Ii 230mA, Pi 2.3W, Li 0, Ci 0
Minimum operating parameter: V/I/W - 10V / 20mA / 0.20W
Approvals: Baseefa12ATEX0243X Intrinsically Safe and CE, options SIL 3, UL, Ex GOST R 2013, GOST K, Inmetro, PDO Oman.

Equivalent To

Asco intrinsically safe 4/2 way, JPIS8344B370, JPIS8344B372, JPIS8344B374, JPIS8344B376
