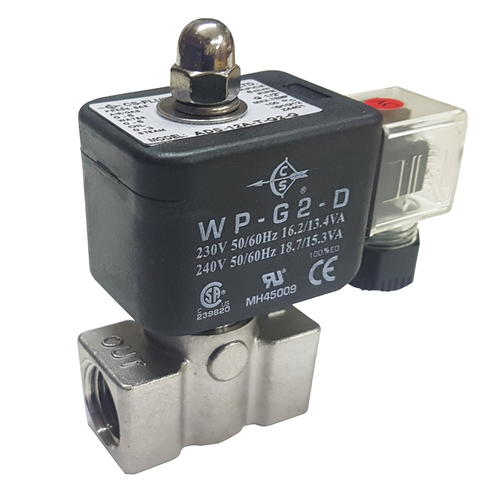

1/2 Stainless Solenoid Valve 0-7 Bar 2/2 N/Closed 6+8mm

Brand: CS Fluid Power

Model: ADS12

Dimensions
Width 27.00
Height 91.00
Length 55.00

£145.51 £198.43
Price Ex Vat: £121.26

47 in stock

Description

1/2 inch Stainless solenoid valve CS Fluid Power ADS12A + ADS12B.
Function: 2/2 way normally closed
Operation: direct acting
Port: 1/2 BSPT, option NPT thread
Body: 316 stainless steel
Internals: stainless steel
Pressure: 0 to 7 Bar according to coil, voltage and orifice
Vacuum: 0 to -101kPa (relative 757.56 mmHg) or 99.67% vacuum
Orifice: 6mm (ADS12A) and 8mm (ADS12B).
Flow: 11.3 to 13.9 L/Min according to orifice, based on water with 1 Bar pressure drop.
Temperature: -10 to +180°C Max according to seal material
Sealing: FKM standard, Option EPDM, NBR, Silicone, PTFE, VST, Neoprene, ECO, HNBR, Hypalon, Butyl IIR
Media: air, water, light oils, vacuum and most other fluids under 50CST and gases compatible with materials of construction.
Coil: WPG2 18 Watt UL, CSA, IP67 CE approved Class H 100% duty rated DIN43650A
Coil Option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 (70% of DC pressure).
Protection: IP65 with LED connector (Included)
Coil option: WPA3C 14.3 to 27.5 Watt (according to voltage) IP54 Class H with 30cm flying lead wires 100% duty rated.
Voltage: 12vDC, 24vDC, 48vDC or 24vAC, 48vAC, 110vAC or 230vAC.
Other options: Manual Override + silver shading ring.
