3/4 BSP High vacuum SUS316 solenoid valve -101Kpa 2/2 Normally Closed

Brand: CS Fluid Power

Model: ADS-20-V-G2-V

Width 60.00
Height 114.00
Length 85.00

£255.46 £331.76
Price Ex Vat: £212.88

0 in stock

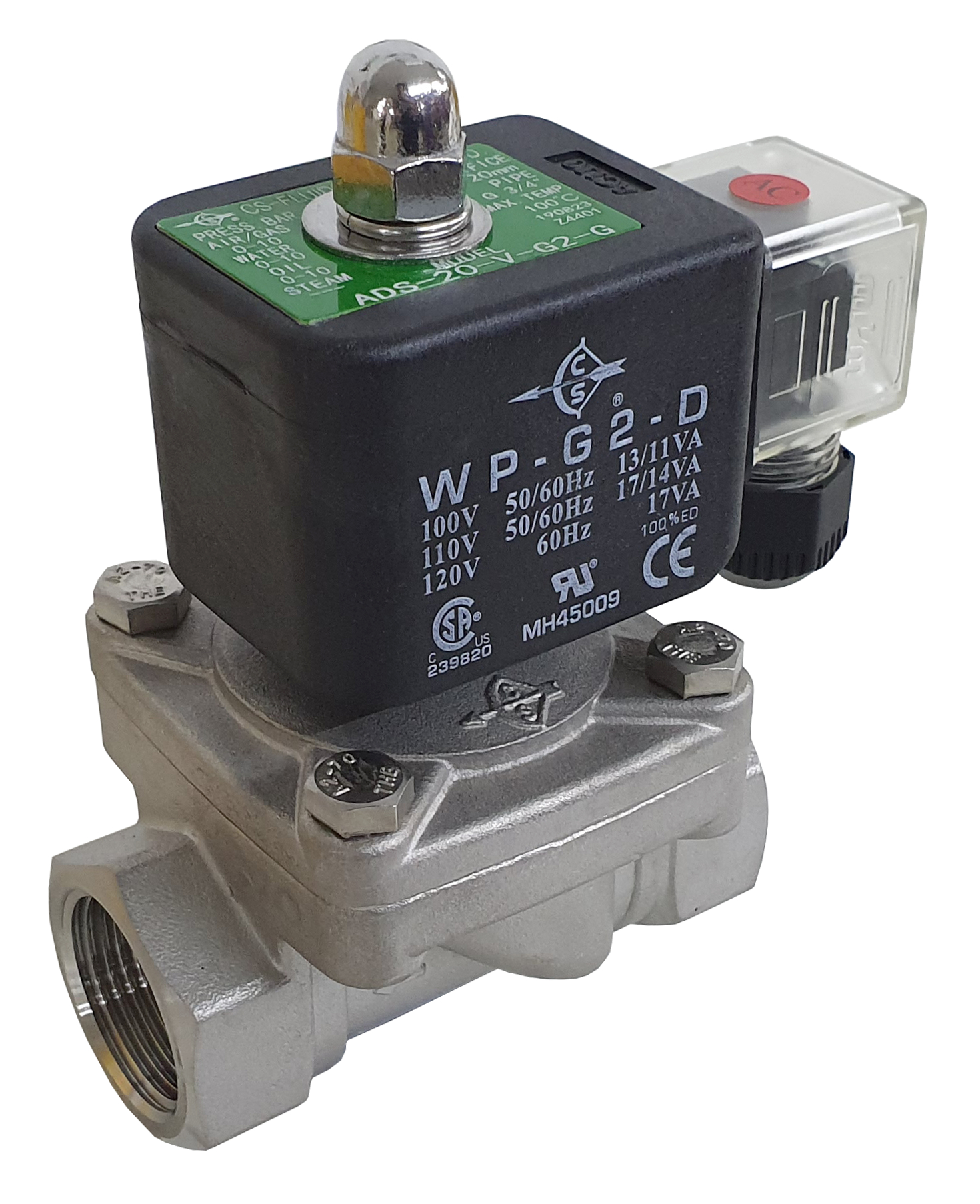

3/4 inch 316 stainless high vacuum solenoid valve CS Fluid Power ADS-20-V-G2-V
Function: 2/2 way normally closed
Operation: Assisted lift (zero-rated)
Port: 3/4 BSPP option NPT or Rc thread
Vacuum: 0 to -101kPa (relative 757.56 mmHg) or 99.67% vacuum
Body: 316 stainless steel
Internals: Stainless steel
Orifice 20.0mm
Kv flow factor: 133 L/min based on water with 1 Bar pressure drop
Cv flow factor: 9.3
Seals: VITON (FKM).
Media: Vacuum.
Coil: WPG2 18 Watt DIN43650A Class H 100% duty rated with CE; UL; CSA and IP67 approval
Protection: IP65 LED connector (Included).
Voltages: 12vDC, 24vDC, 48vDC, 24vAC, 48vAC, 110vAC, 230vAc and 380vAC.
Other options: Manual Override, degreased and custom-made options available upon request.
