1/8 1/4 Stainless Solenoid Valve 0-30 Bar 2/2 N/Closed 1-5mm

Brand: AAA (Sunwell)

Model: SC03,SC06

Width 30.00
Height 63.00
Length 30.00

£70.25 £70.25
Price Ex Vat: £58.54

0 in stock

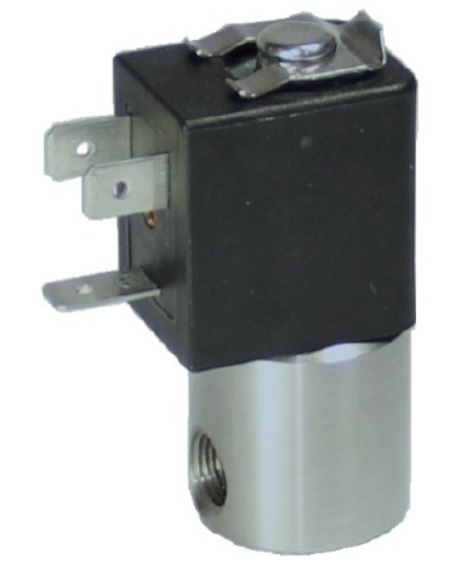

1/8 1/4 inch Miniature stainless steel solenoid valve SC03/SC06
Function: 2/2 way normally closed
Operation: direct acting
Body: 304 stainless steel
Internals: stainless steel
Port: 1/8 or 1/4 BSPT, option NPT thread
Orifice: 1mm, 1.2mm, 1.6mm, 2mm, 2.5mm, 3mm or 5mmm
Kv flow factor: 0.5 to 6.66 L/min according to orifice, based on water with 1 Bar pressure drop.
Pressure: 0 to 30 Bar according to orifice and coil power
Seals: NBR standard, option FKM, EPDM, PTFE and FFKM (Kalrez)
Media: air, water, light oils, vacuum and most other fluids under 50 CST and gases compatible with materials of construction.
Coil: 6 Watt Nass Magnet system 8/22 power level 5 Class F DIN 43650B
Coil: 6.8 Watt Nass Magnet system 8/30 power level 6 Class F DIN 43650A.
Protection: IP65 with connector (Included)
Coil option: ATEX 5.2 Watt EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22.
Voltages: 12vAC, 24vAC, 48vAC, 110vAC, 230vAC or 12vDC, 24vDC, 48vDC or 110vDC

This Stainless Steel Solenoid Valve is the smallest, most compact low cost in our range and is ideally suited for small applications requiring low power consumption.
