Brand: AAA (Sunwell)
Model: BS04,BS06
| Dimensions | |
|---|---|
| Width | 30.00 |
| Height | 60.00 |
| Length | 35.00 |
£44.70
£44.70
Price Ex Vat: £37.25

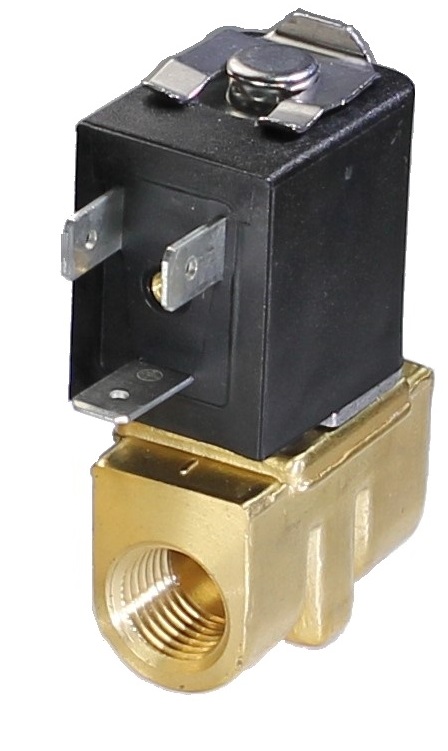

1/8 1/4 inch Brass 2/2 solenoid valve BS04 BS06
Function: 2/2 way normally closed
Operation: direct acting
Port: 1/8 or 1/4 BSP thread, option NPT or Rc thread
Body: Brass
Internals: stainless steel
Pressure: 0 to 30 Bar according to orifice and coil
Vacuum: 10-2 Torr, 10-1Torr or 10 Torr according to orifice (Not with PTFE seal)
Temperature: -20C to +145C according to seal and coil
Orifice: 1.0mm, 1.3mm, 1.6mm, 2.0mm, 2.5mm or 3mm
Kv flow factor: 0.5 to 4.5 l/min according to orifice
Seals: NBR, FKM, EPDM, PTFE or FFKM
Media: Vacuum, air, water, light oils and other fluids under 50 CST and gases compatible with materials of construction.
Coil: 6 Watt Nass Magnet system 8/22 power level 5 DIN43650B 100% duty rated
Coil: 6.8 Watt Nass Magnet system 8/30 power level 6 DIN43650A 100% duty rated.
Coil 22002EX: ATEX 5 Watt 8/30 EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22.
Manufacturers data sheet
