1 Brass Solenoid Valve 0.5-10 Bar 2/2 Latching

Brand: Shako Co Ltd

Model: LPU22508

Width 70.00
Height 126.50
Length 96.00

£106.24 £159.36
Price Ex Vat: £88.53

1 in stock

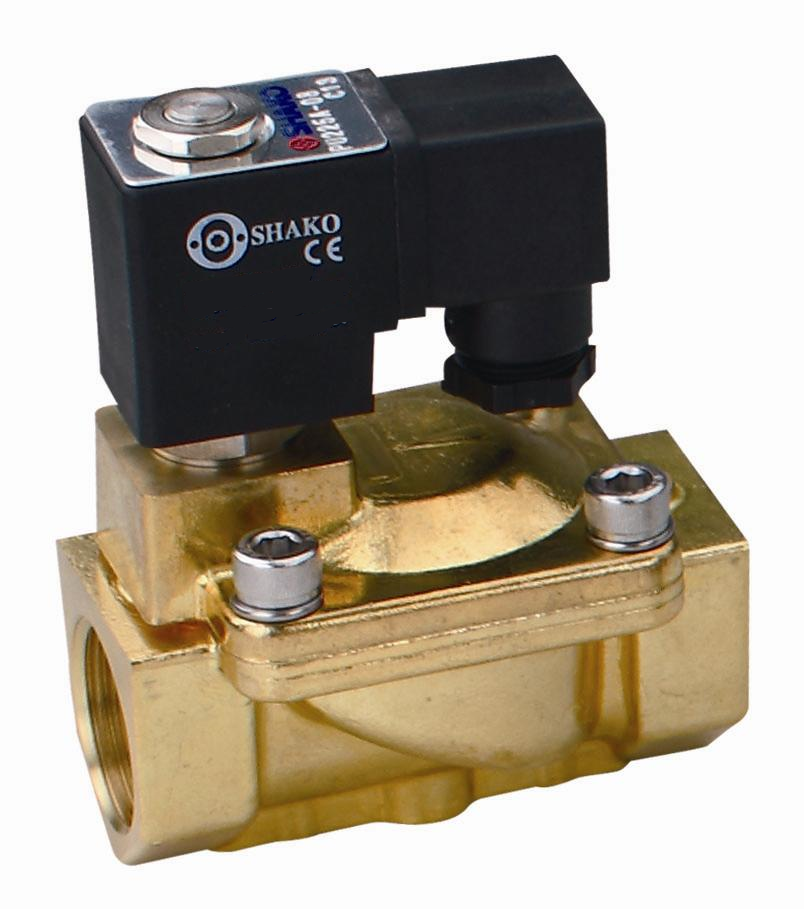

1 inch Brass solenoid valve Model LPU225A-08
Function: 2/2 way latching
Operation: pressure assisted (requires 0.5 Bar min pressure differential)
Pressure: 0.5 to 10 Bar differential, Max working 15 Bar
Port: 1 BSP, option NPT thread
Body: Brass
Internals: Stainless steel
Orifice: 25.0 mm
Kv flow factor: 165 L/min based on water with 1 Bar pressure difference.
Sealing: NBR standard optional EPDM, Viton (FKM) or HNBR
Media: air, water, oil and other fluids under 50 CST and gases compatible with materials of construction.
Temperature: -15°C to +80°C with NBR seals, option Viton (FKM) -10°C to +180°C, EPDM -5°C to +130°C, HNBR -40°C to +150°C.
Protection: IP65 with connector (Included)
Coil: 22003L Latching coil 6vDC or 12vDC, 10-20 mSec power pulse stays open, reverse polarity power pulse will stay closed.
HS code 84818030
