Description

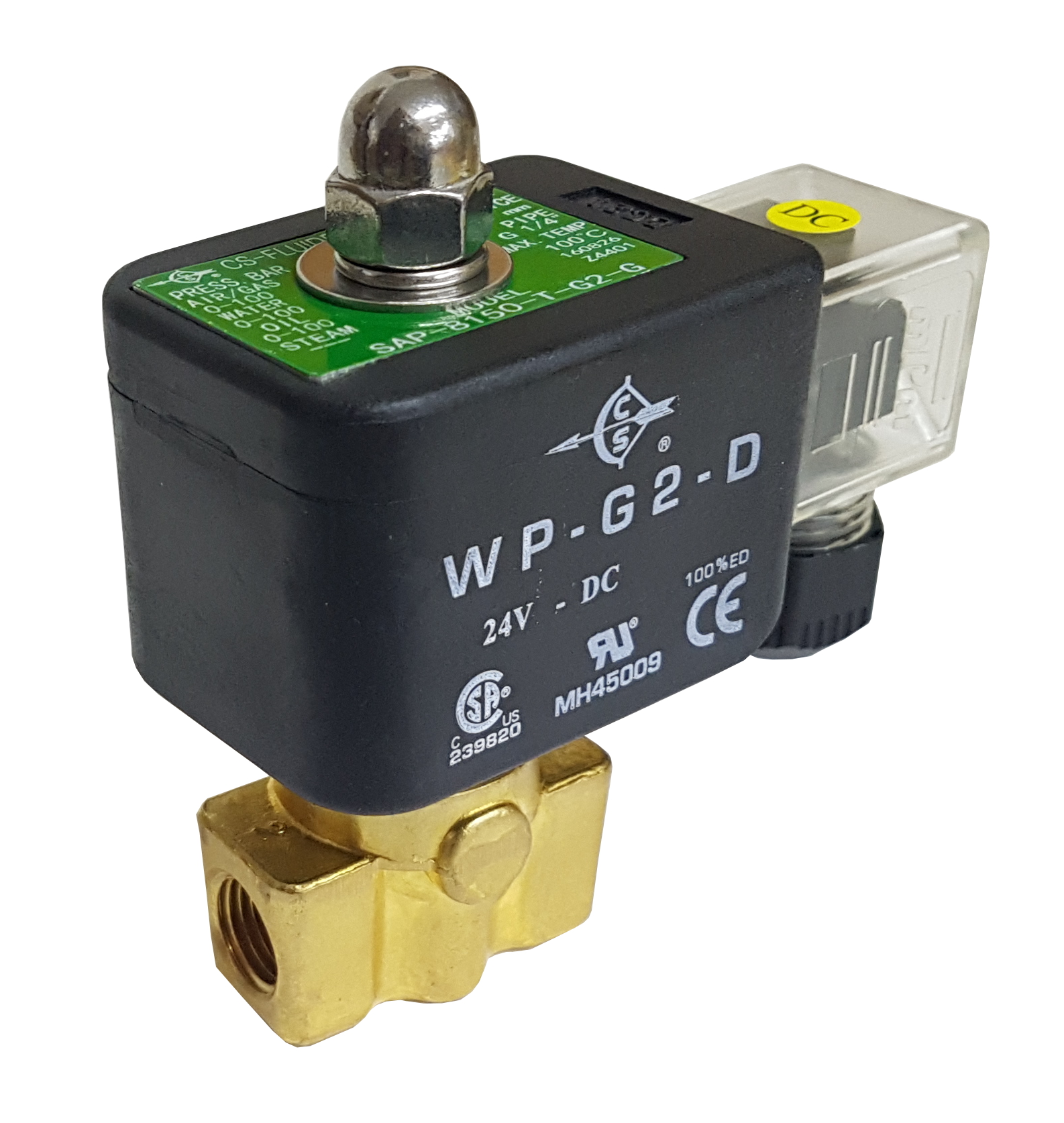

High pressure solenoid valve 1500psi brass CS Fluid Power SAP
Function: 2/2 way Normally Closed
Operation: Pressure assisted (Min 1 Bar pressure differential)
Port: 1/8, 1/4 or 3/8 BSP, option NPT thread
Body: Brass
Internals: stainless steel
Pressure: 1 to 100 Bar
Orifice: 5.0mm standard, Option 6.0mm (SAPXX60 + voltage)
Kv flow factor: 9.1 litres a minute based on water with a 1 Bar pressure difference.
Sealing: PTFE + NBR, option PTFE with EPDM, FKM, Silicone, VST, Neoprene, ECO, HNBR or Hypalon. Elastomer sealing only 40 Bar Max.
Media: air, water, oil, carbon dioxide and most other non corrosive gases or fluids under 50CST compatible with materials of construction.
Coil: WPG2 18 Watt UL, CSA, IP67 and CE approved 100% duty rated DIN43650A.
Protection: IP65 LED connector (Included)
Voltages: 12vDC, 24vDC, 48vDC, 110vDC or 12vAC, 24vAC, 48vAC, 110vAC, 230vAC or 380vAC 50/60Hz.
Ideally suited for low temperature media down to -60°C such as bottled CO2 (carbon dioxide) CO2 special effects, DMX control systems, cryogenic cannon and high pressure CO2 jet systems up to 100 bar.
All SAP solenoid valves are 100% pressure and leak tested.

Equivalent To

Alcon, high pressure solenoid valve series, HP2, HP3, HP4
Asco, SCB223A121, SCB223A125, SCB223A123, SCB223A127
Burkert, 5404, 6240, 184742, 184743, 184744, 184745, 184746, 184747, 178311, 178312, 178313, 178315, 178316, 178317, 322499, 322501, 322502, 322503, 322504, 332413, 322517, 322518, 322519, 322505, 322506, 322507, 322508, 322509, 322510, 322511, 322512, 322513, 348587, 319414, 319417, 349656, 349658, 377225, 382162, 382501, 349657, 349659, 263995, 331984, 317310, 322500
Ceme solenoid valve, 8302, 8303, 8322, 8323
CS Fluid Power, SAP6150, SAP8150, SAP10150
Danfoss, 032U3642, 032U3643
DEMA 453P.2 Solenoid Valve 3/8 port, 80 Bar, PTFE seals
FG Line, L15
Ideal alternative to: -GB
KSD, AB41-03-1, AB41-03-2, AB41-03-3
mandm solenoid valve, d635dtt1, al15dr87t
Nadi, L20T87W2P, L20T87E3P, AL15DR87T, CL15DR87T
Nass, 119102527
Norgren, 85300XX.9151.00000, 85301XX.9151.00000, 8251100.9101.02400, 8252100.9101, 8251107.9151, 8252107.9151, 8251120.9151, 8252120.9151
ODE solenoid valve, 21a2w0f55, 4731K0T70
Parker, 7321KBN2RN00, 73216BN2MT00, 04F28C1D20ACF, 7321HBN2SN00, 06F28C1D20ACF, 73216BN2MT00, 7321HBN3TN00, 04F25C2122CAF, A35 series, 73212, 73212BN2MN00, 7321KBN2RN0, A61, 73216BN2MT00, 04F25C2122C3F, 06F25C2122C3F, 73212BN3SN00
SMC solenoid valve, VXH2230-02
