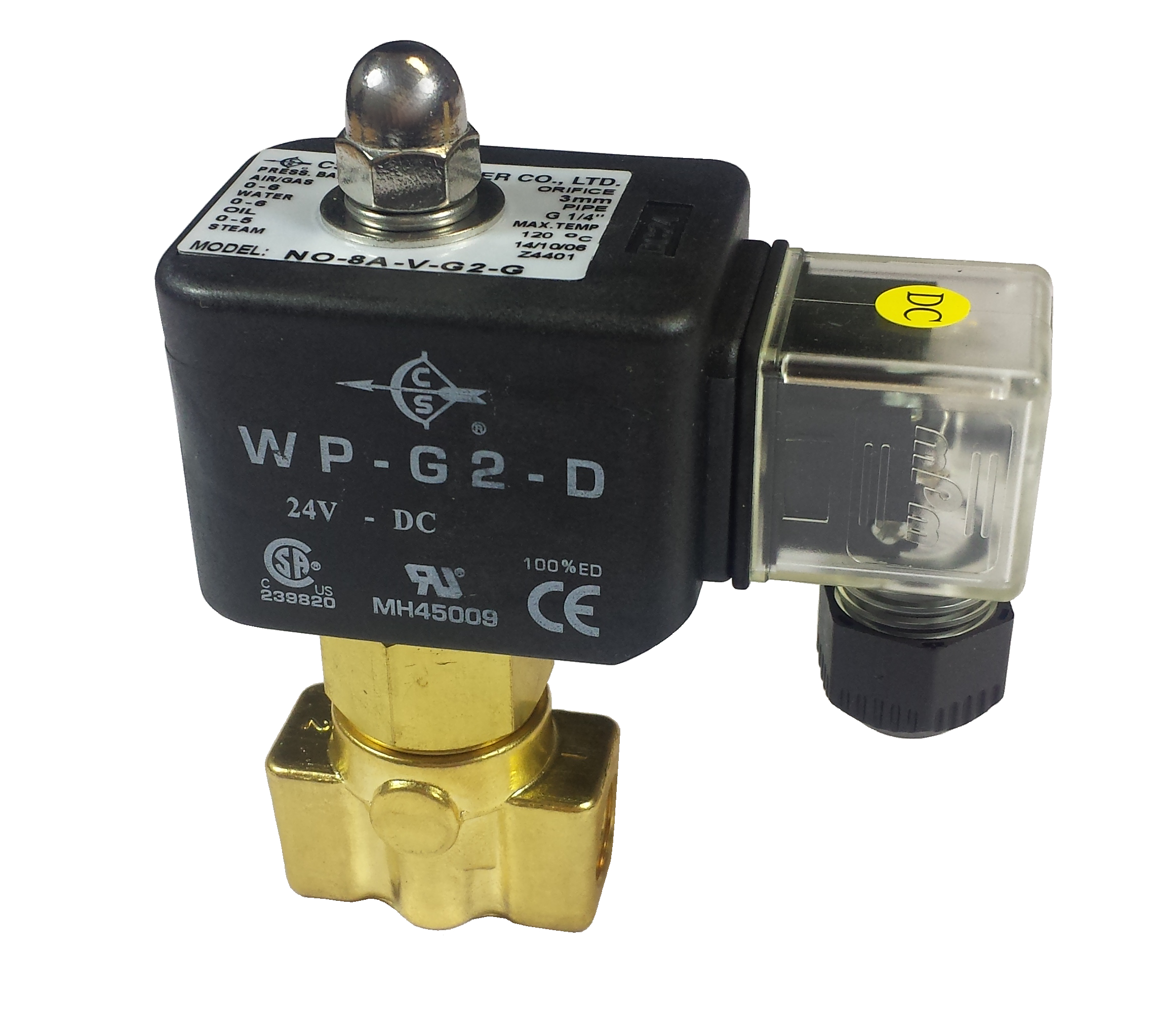

1/8 1/4 3/8 1/2 Brass Solenoid Valve 0-10 Bar 2/2 N/Open 3-6mm

Brand: CS Fluid Power

Model: NOAD612

Dimensions
Width 19.00
Height 108.00
Length 41.00

£87.32 £119.06
Price Ex Vat: £72.77

12 in stock

Description

1/8 1/4 3/8 1/2 inch Small brass solenoid valve CS Fluid Power NOAD612
Function: 2/2 way normally open
Operation: Direct acting
Port sizes: 1/8, 1/4, 3/8 or 1/2 BSP, option NPT thread
Pressure: 0 to 10 Bar according to orifice and coil power level.
Vacuum: 10-4 Torr
Body: Brass
Internals: stainless steel
Seals: FKM standard, Option NBR, EPDM, Silicone, PTFE, VST, HNBR, Neoprene and Hypalon.
Media: air, water, light oils and most other fluids under 50CST and gases compatible with materials of construction.
Orifice: 3mm, 4mm, 5mm or 6mm (option according to port size)
Kv flow factor: 3.7 to 11.3 L/Min based on water with 1 Bar pressure drop.
Coil: WPG2 18 Watt UL CSA CE IP67 Class H certified 100% duty rated DIN43650A
Protection: IP65 with LED connector (Included)
Voltage: 12vDC, 24vDC, 48vDC, 110vDC or 24vAC, 48vAC, 110vAC or 230vAC 50/60Hz.
