Brand: CS Fluid Power
Price Ex Vat: £146.26

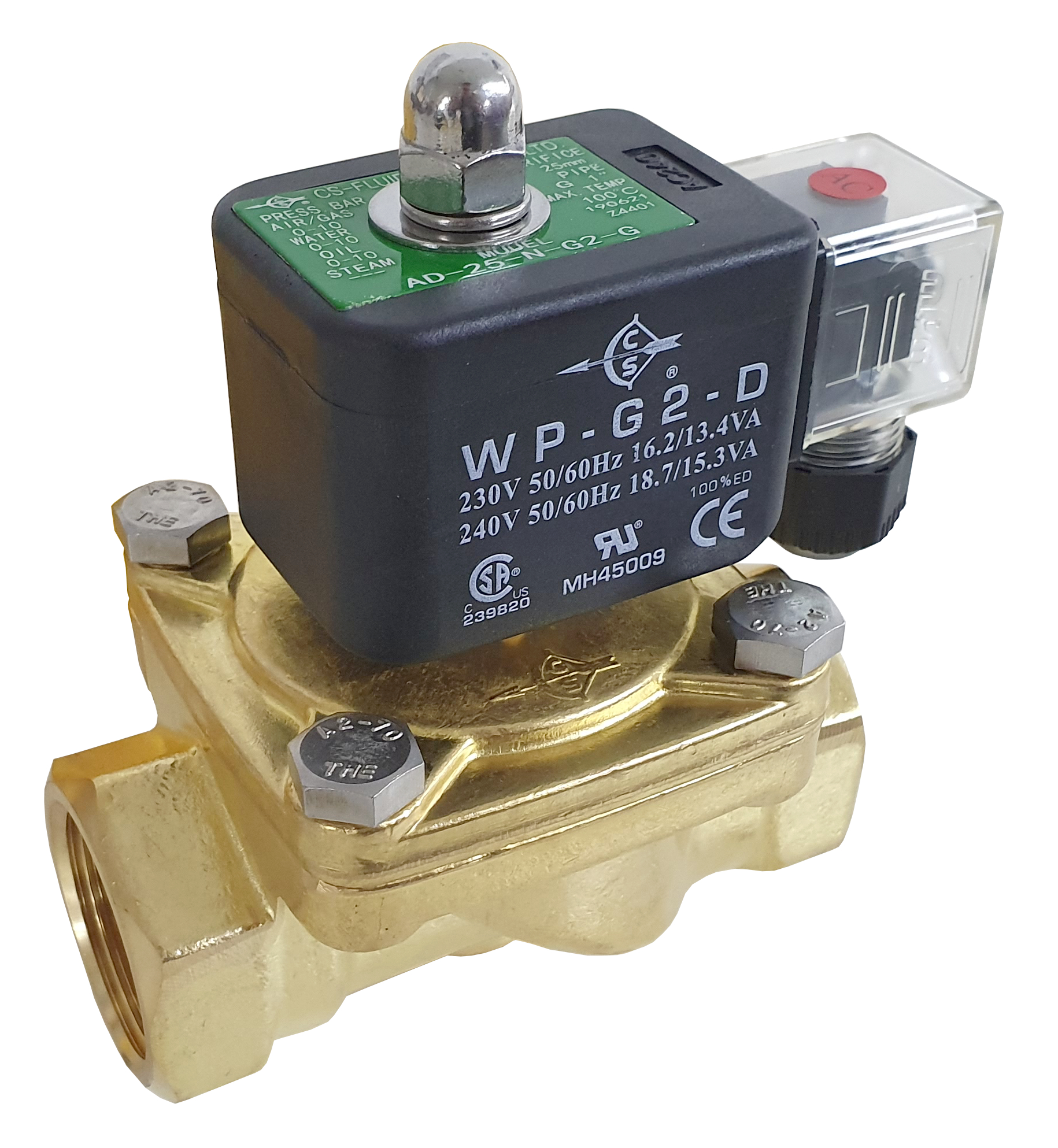

1 inch Brass solenoid valve CS Fluid Power AD25
Function: 2/2 way normally closed
Operation: Assisted lift (zero rated)
Port: 1 BSPP option NPT or Rc thread
Pressure: 0 to 10 Bar (AC) or 7 Bar (DC voltage).
Vacuum: 10-6 Torr
Internals: Stainless steel
Seals: NBR standard, option EPDM, FKM, Silicone, VST, Neoprene, ECO, HNBR or Hypalon.
Media: air, water, light oils, LPG, diesel, vacuum, petrol, propane, inert gases, nitrogen, carbon dioxide, argon, oxygen, antifreeze, glycol, kerosene, fuel oil and most other non aggressive fluids under 50CST and gases that are compatible with materials of construction.
Kv flow factor: 188.8 L/min based on water with 1 Bar pressure drop
Coil: WPG2 18 Watt DIN43650A Class H 100% duty rated with CE; UL; CSA and IP67 approval
Protection: IP65 LED connector (Included).
Coil Option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 (Pressure 0 to 3 Bar Max).
Voltages: 12vDC, 24vDC, 48vDC, 24vAC, 48vAC, 110vAC, 230vAC and 380vAC.
Other options: Manual Over Ride, degreased and custom made options.
ACL, E108FB24, D108FB24
Burkert, 45291, 221715, 221714, 221716, 221703, 221702, 221704
Ceme solenoid valve, 8416
CKD, AD11-25A, ADK11-25A, kzv3-25ab
CS Fluid Power, AD25N, AD25V, AD25E
Asco solenoid valve, SCE215B050
Keihin, VKD-25WG, VKD-25WGMJ, GVD-25G
