2 Steam Solenoid Valve 0.5-10 Bar 2/2 Normally Closed

Brand: Shako Co Ltd

Model: PU22520S

Width 112.00
Height 174.30
Length 160.00

£291.89 £538.66
Price Ex Vat: £243.24

16 in stock

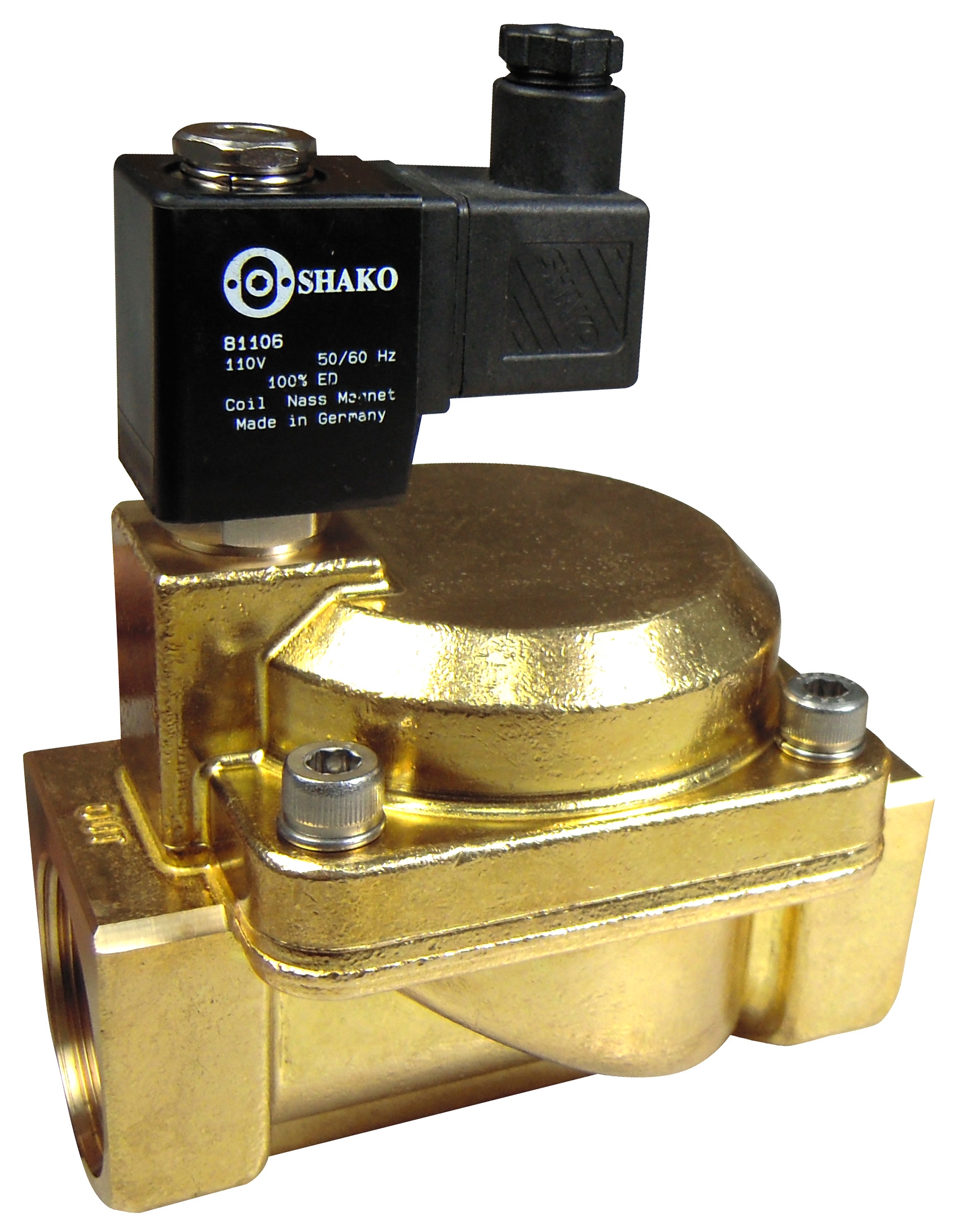

2 inch brass Steam solenoid valve Shako PU225S-20
Function: 2/2 Normally Closed
Operation: Pressure assisted (Min 0.5 Bar pressure differential)
Port: 2 BSPP, option NPT or Rc thread.
Pressure: 0.5 to 10 Bar Steam, 15 Bar air / water
Body: Brass
Internals: stainless steel
Seals: PTFE
Media: steam, air, water and fluids under 50 CST and gases compatible with materials of construction.
Orifice: 50.0mm
Kv flow factor: 888 L/min based on water with 1 Bar pressure drop.
Temperature: -40°C to +180°C
Coil: Nass Magnet Class H 15 Watt IP65 DIN43650A 100% duty rated.
Protection: IP65 with connector (Included)
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22.
Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 240vAC or 380vAC 50/60hz.
