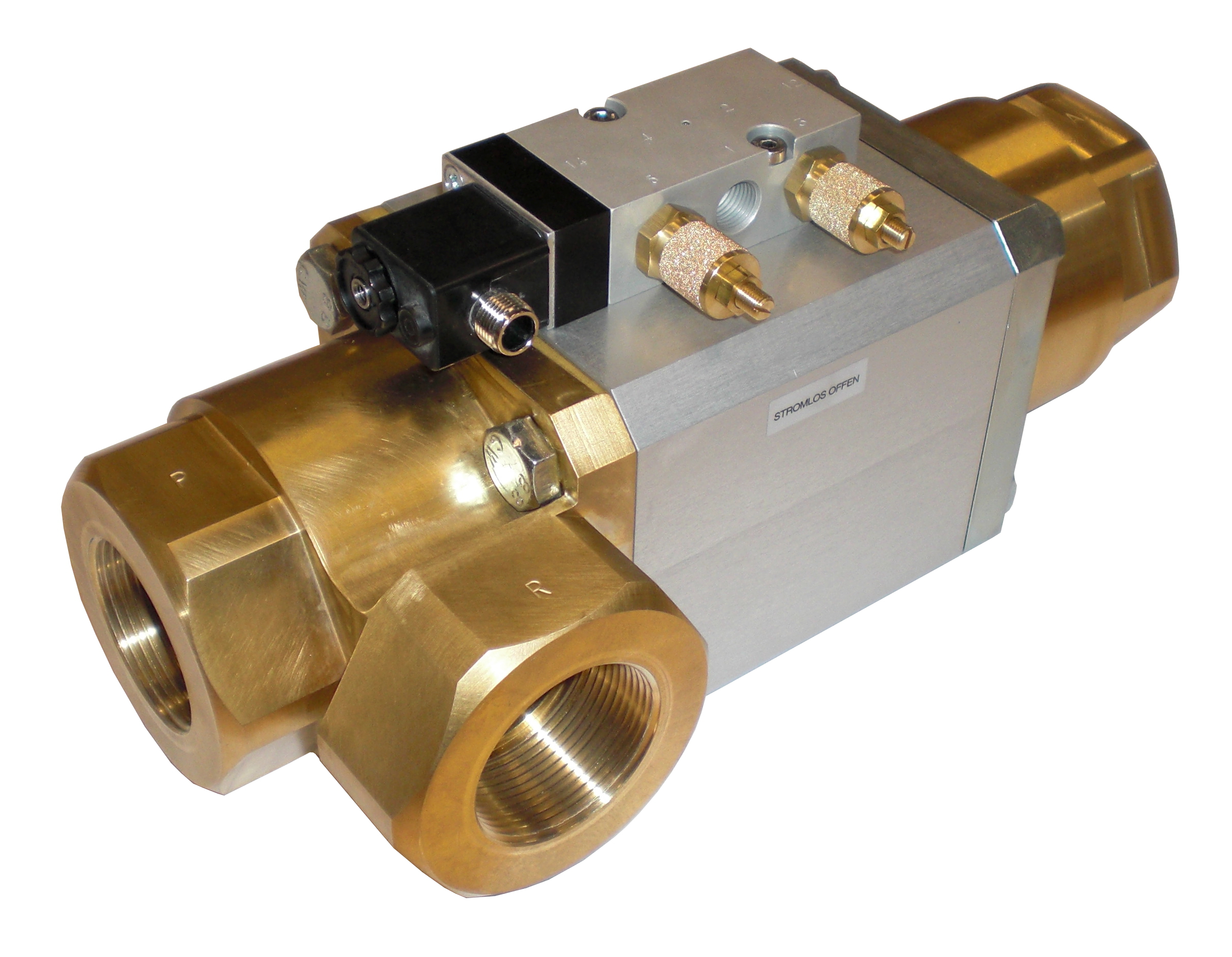

Coaxial 3/2 Pneumatic valve 0-64 Bar Brass Stainless 11/2 DN40

Brand: RSG

Model: 38040

Width 130.00
Height 130.00
Length 304.00

£1,227.71 £2,879.28
Price Ex Vat: £1,023.09

0 in stock


Coax air pilot valve 3 way 0-64 Bar DN40 RSG 38040
Function: 3/2 way normally closed, option normally open
Operation: air pilot control 3 to 8 Bar 1/4 BSP and Namur interface
Pressure: 0 to 64 Bar (0 to 16 Bar reverse flow)
Orifice: 40.0mm
Kv flow factor: 567 l/min
Port size: 11/2 BSP thread, option NPT or flange
Body: Brass, option stainless steel 303 or 316L
Internals: stainless steel 316L
Media Temperature: -10°C to +100°C
Seals: FKM and PTFE, option for PTFE with NBR or EPDM and PTFE only.
Media: Fluids under 500 CST and gases compatible with materials of construction.

Options: normally closed 380A40, normally open 380B40, mounting brackets, Open and or closed volt free position feed back switches and oil and grease free and Namur solenoid valve CY525-02S single or CY525-02D double acting.
