11/4 Bronze steam solenoid valve 0.3-10Bar Normally Closed

Brand: Kuhnway (Queen)

Model: MT32S

Width 132.00
Height 193.00
Length 160.00

£294.17 £445.70
Price Ex Vat: £245.14

12 in stock

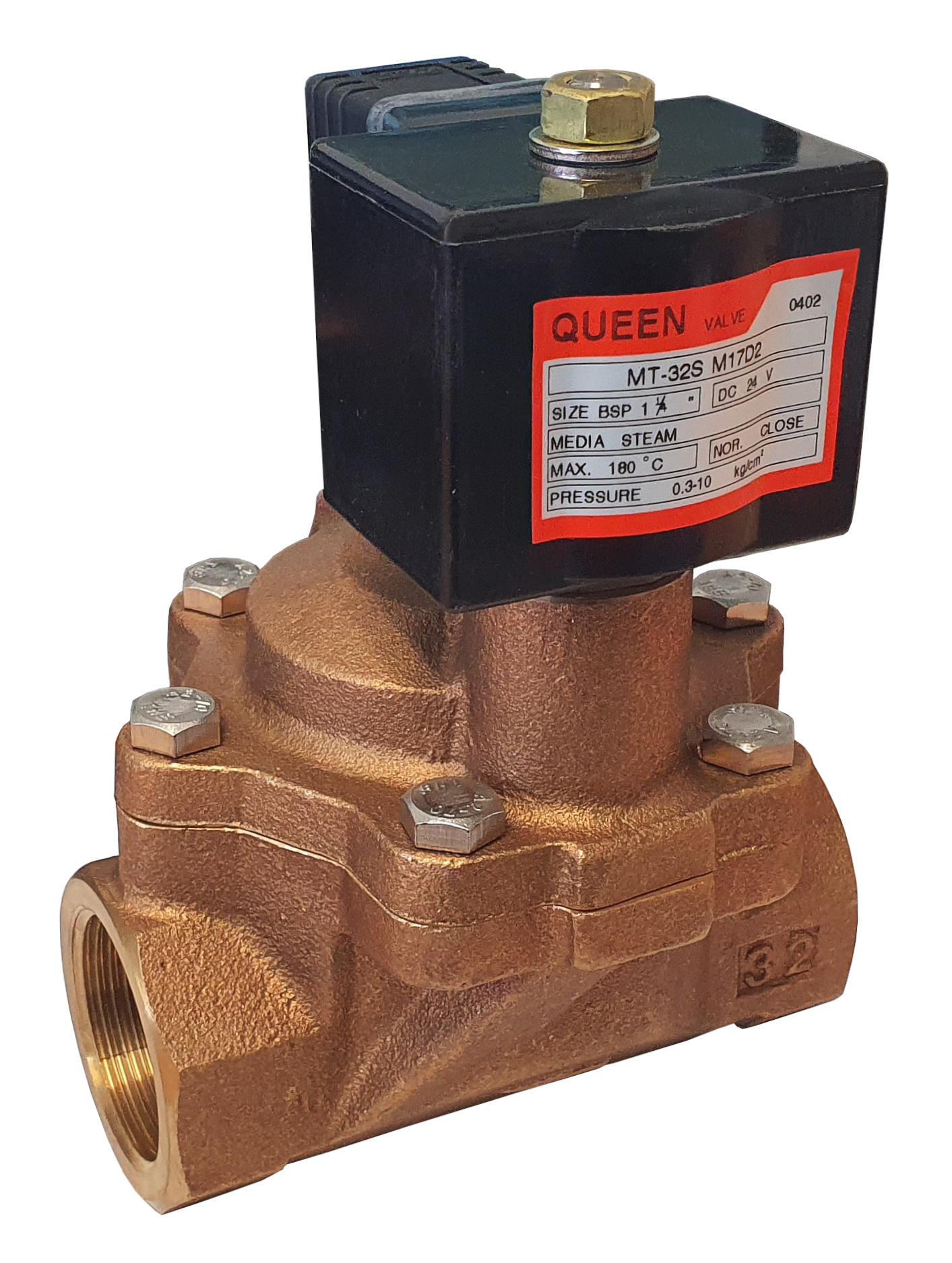

Bronze Steam solenoid valve Queen MT32S
Function: 2/2 Normally Closed
Operation: Pressure assisted (Requires Min 0.3 Bar pressure difference)
Port: 11/4 BSPP, option NPT or Rc thread.
Pressure: 0.3 to 10 Bar Steam, 8 Bar air / water, 7 Bar Oil.
Body: Bronze
Internals: stainless steel
Seals: PTFE
Media Temperature: -10°C to +180°C
Media: air, water, steam, light oil and most fluids under 50 CST and gases compatible with materials of construction.
Orifice: 33mm
Kv flow factor: 314.6 L/min according to orifice, based on water with 1 Bar pressure drop.
Coil: M17 Class H 21 Watt IP65 DIN43650A 100% duty rated.
Protection: IP65 with connector (Included)
Voltages: 24vAC, 24vDC, 110vAC or 230vAC 50/60hz.
Mounting: +/- 15 degrees from coil vertical
