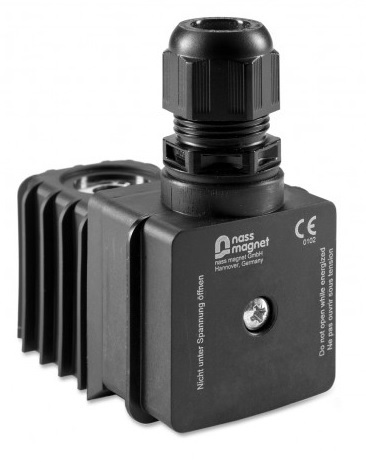

ATEX Solenoid Coil System 13/52 II 2G Ex mb T4 & T6 T Box

Brand: Nass Magnet GmbH

Model: 22003EX-TBOX

Dimensions
Width 52.00
Height 72.00
Length 72.00

£119.99 £266.99
Price Ex Vat: £99.99

2 in stock

Description

Solenoid Coil System 13 ATEX with terminal box Width: 52 mm
Protection ll 2 G Ex e mb llC T4 Gb by encapsulation ll 2D Ex tb mb IIIC T130°C Db IP 65, IP 67
Connection type: terminal box
Moulding material: thermoplastic
Voltage tolerance: ± 10%
Ambient temperature: - 40°C to +50°C
Relative duty cycle: 100 %
Insulation class of insulating materials according to DIN VDE 0580: F
Degree of protection: IP 65/IP 67
Type examination certificate: PTB 11 ATEX 2027 X

Equivalent To

GSR ATEX coil .178, .148, K0591410 24vdc, .048
M&M coil, N253 24vdc, N203 24vAC, N403 110vac, NK03 120vAC, N703 230vAC
Nass Magnet, 113-030-0242 (12vDC), 113-030-0264 (24vDC), 113-030-0293 (48vDC), 113-030-0003 (24vAC), 113-030-0004 (110vAC), 113-030-0002 (230vAC), 113-030-0288, 113-030-0117.
Nass Magnet original references, 1218 00.1-00/7006, 25008789, 25008789, 051800.051829,121800...121829,051830.051859, 121830.121859, 121800.1-00/6973, 0518 00.1-00/6971, 2508465,12180010, 25008465, 0518 00.1-00/6987, 25009098, 1218 00.1-00/7003, 113-030-0293, 0518 00.1-00/6990, 0518 00.1-00/6971, 25008460
Nass Magnet, 24VDC with 5 meter cable 121800.1-00/697, 24vdc with 10 meter cable 121800.1-00/7055, 113-030-0241
ODE, TNA series solenoid coil, tna4x024d4 24vAC, tna5x110d4 110vAC, tna05224d4 230vAC, tna10024c4 24vDC
Regada ATEX coil, 664034205 24vdc, 664033204 110vAC, 664034202 230vAC
Shako Ex coil, SA21336GT4N, SA11336GT4N, SD91336KT4N, SA91336GT4N
Stasto coil, EPC23050, EPC2450, EPC02400, EPC11050
STC coil, 2W200C-1-E (12vdc), 2W200C-2-E (24vdc), 2W200C-2A-E (24vAC), 2W00C-3-E (110vAC), 2W200C-4-E (220-230vAC)
Thermador 980540, 980541, 980542, EExmIIT4
Festo 8029143 VACN-N-K1-EX4-M 24vDC, 8029141 VACN-N-K1-3A-EX4-M 230vAC, 8029142 VACN-N-K1-16B-EX4-M
