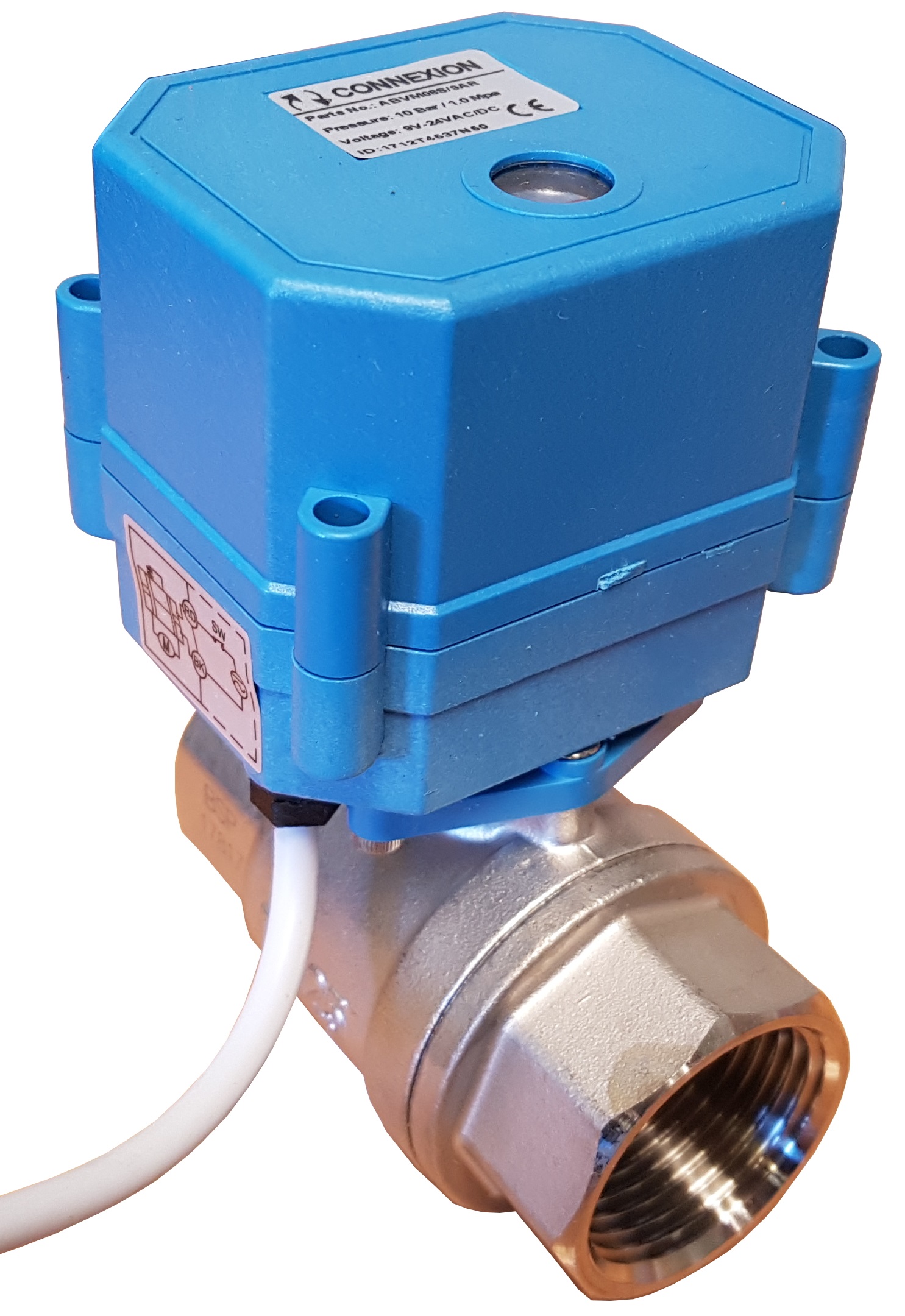

1 Electrically Actuated WRAS Ball Valve 9-24vAC/DC or 110-240vAC ABVM08S

Brand: Connexion

Model: ABVM08S

Width 68.00
Height 110.00
Length 81.00

£66.70 £111.17
Price Ex Vat: £55.58

52 in stock


1 inch Motor Actuated WRAS Certified Ball Valve Mini series ABVM08S ®.
Cycle life: 100,000 open/close
Power: 2.25 to 5 Watts Max (Back EMF 3 to 5 Volts over nominal).
Open or close time: 5 seconds
Protection: IP67
Temperature: -15°C to +50°C ambient.
Voltage: 6 to 35 volt AC/DC or 110 to 240 volt AC with multi voltage technology
Includes: visual position indication.
Control options: Failsafe Closed, Failsafe Open or Power Open/Power Close.

Ball Valve:
WRAs approved certificate number 2010303
1 BSP thread, option NPT thread
Bore: 25.0mm
Body: 304 stainless steel
Pressure: 0 to 10 Bar
Seals: PTFE
Temperature: -15°C to +100°C.
Media: air, water, oil and fluids and gases compatible with 304 stainless steel and PTFE.

Options to choose.
1. Failsafe Closed = Power ON will OPEN - Power OFF will automatically CLOSE with reserve power. (ABVM08S/9AR + ABVM08S/2AR)

2. Failsafe Open = Power ON will CLOSE - Power OFF will automatically OPEN with reserve power. (ABVM08S/9AR-NO + ABVM08S/2AR-NO)

Failsafe: Requires 15 second power ON when out of the box to charge, thereafter minimum 10 second power ON when energised for recharging.
Will draw less than 0.22 Watt when powered and not moving.

3. Power Open/Close = connect RED +ve and BLACK -ve wires, GREEN wire is the control wire.
Power to GREEN valve opens or power off valve closes. (ABVM08S/2 and ABVM08S/9)

4.Control voltage 9 to 24v AC/DC (9) or 110 to 240vAC (2)

Other options.
Manual Over Ride = Button Lift + Twist will open/close valve and disengage motor, push back down to reengage motor.
Available 9 to 24 volt only. (ABVM08S/9AR-MO, ABVM08S/9AR-NO-MO, ABVM08S/9-MO)

ABVM Weather Cover (recommended for use out doors if ordered with manual override system).

E2 Position Switches = Position OPEN and CLOSED volt free feed back (no voltage supplied from actuator).
Rating 0 to 36vDC 0.4 Amp Max. (ABVM08S/9AR-E2, ABVM08S/2AR-E2, ABVM08S/9-E2, ABVM08S/2-E2)

Ideal for dirty or clean water drainage for caravans, canal boats, motor homes, HVAC, solar water heating, solar thermal system, water recycling, rainwater system, BMS building management systems, communal and district heating systems, tenant heat meter services, harvested grey water systems, home energy control systems, building zone applications and heating metering systems.

Destruction Test.
On the 26th November 2020 at around 10.40am we connected an ABVM08S/9AR (a dry 1/2 BSP mini ball valve with 9-24vACDC failsafe closed actuator) to our SVDT22 (digital cycle timer), and set this for 1 cycle every 60 seconds (30 sec power ON Open then 30 Sec power off to Close) 24/7 all day all night non stop. (except holidays)
As of September 30 2021 the valve has opened and closed 444,400 times and still working perfectly.
