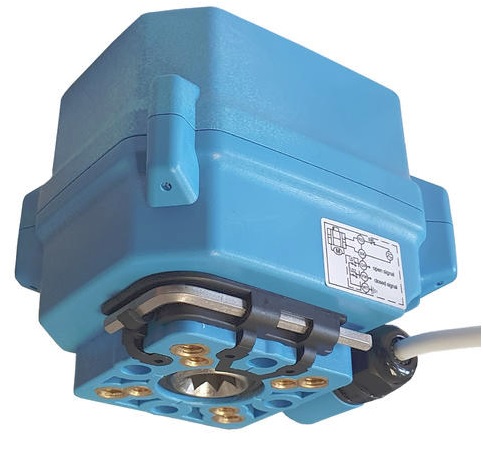

Electric Actuator 15NM 10 Second IP67 Multi-voltage ISO5211

Brand: Connexion

Model: ABV-E2-MO

Dimensions
Width 75.70
Height 80.40
Length 92.60

£105.23 £159.43
Price Ex Vat: £87.69

120 in stock

Description

Electric Actuator quarter turn 15NM ABV-E2-MO
Mount: ISO5211 F03 + F05, with 11x11mm or 9x9mm drive (Depth 18mm)
Speed: 10 Second
Torque: 15NM (20NM Break)
Power: 22 Watt Max
Capacitor recharge after moving: 1 Watt Max
Protection: IP67 with 0.5 Meter cable
Housing: Strong PPO Plastic
Ambient Temperature: -15C to +60C
Media Temperature: -15C to +90C
Cycle Life: 70,000 cycles
Duty Cycle: 100%, can be open and closed every 60 seconds
Visual Position Indication
Manual Override facility (Allen Key provided)
E2 Fully Open and Closed volt free position feed back switches (36vDC 0.4Amp Max)
Voltages: 12vDC-24vDC-24vAC or 110-240vAC with multi voltage technology.

Options to choose:
A. Failsafe = Power +ve Red and -ve Black, actuator will rotate 90 degrees - Power OFF will automatically return with reserve power.
E2 volt free open + closed position feedback (3 wires Green/Yellow + White)

Failsafe actuators require initial 30 second power ON when new to charge reserve power, thereafter a minimum 10 Seconds.
Will draw less than 1 Watt when powered and not moving.

B. Power Open/Power Close = Connect Red +ve and Black -ve, Green is the control wire.
Power to GREEN actuator rotates 90 degrees – remove power from GREEN actuator returns to start position.
E2 volt free open + closed position feedback 4 wires (Blue/Grey + Yellow/White)

Destruction Test.
On the 1st November 2020 at around 5PM we connected an ABV-E2-MO/9AR to a dry 11/2 BSP stainless steel ball valve with 12-24vDC-24vAC failsafe closed actuator. Then using our SVDT22 (digital cycle timer) set to 1 cycle every 60 seconds (30 sec power ON Open then 30 Sec power off to Close) 24/7 all day all night non-stop. (Except holidays)

In October 2022 the valve finally failed after 977,762 open and close cycles.
