Description

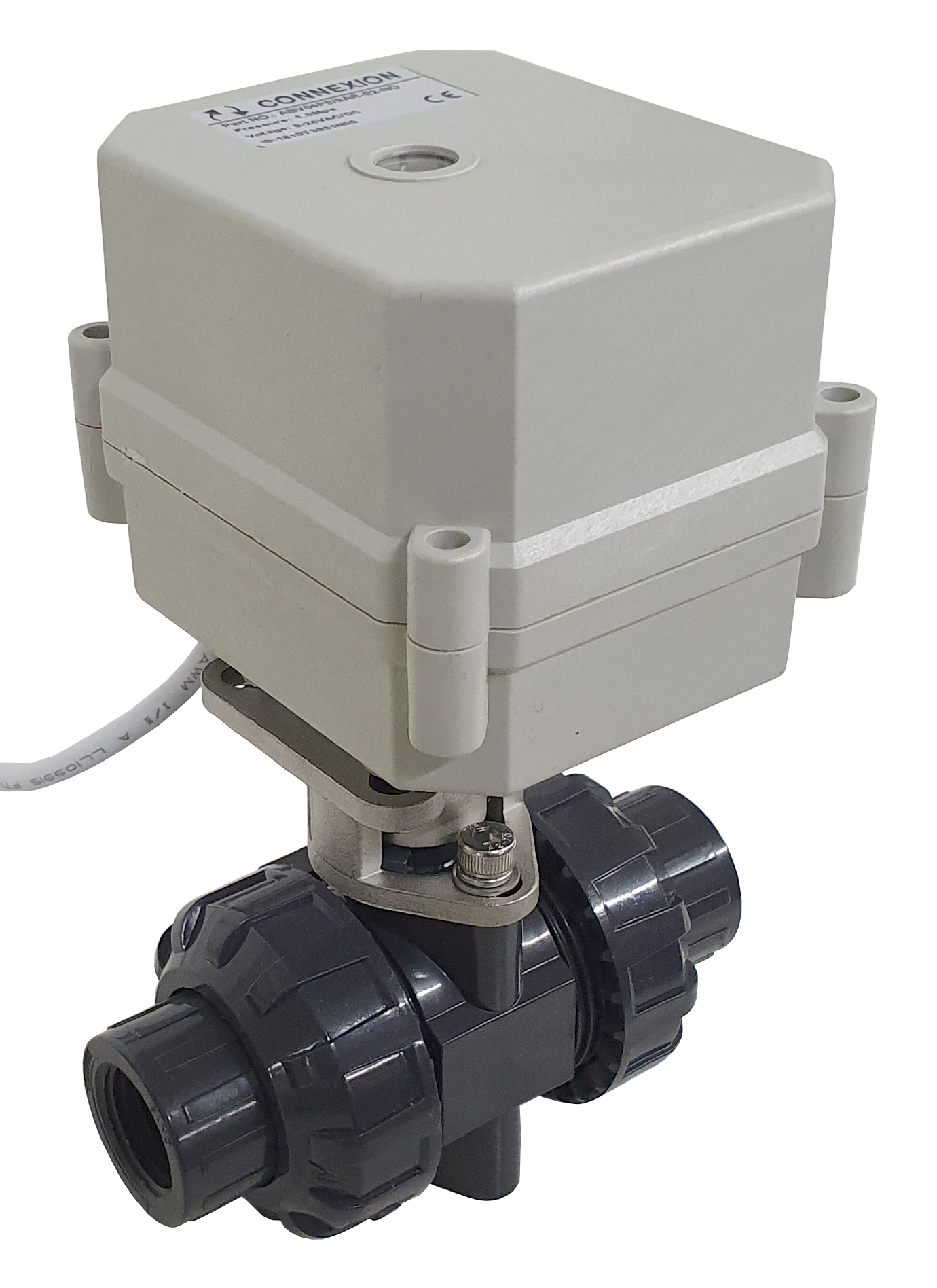

3/4 inch motor actuated UPVC ball valve ABV06PE/9AR-E2.
Actuator:
Cycle life: 50,000 open/close
Power: 22 Watts when moving
Open or close time: 15 seconds
Protection: IP67
Temperature: -15°C to +50°C ambient
Voltage: 9 to 24 volt AC/DC with multi voltage technology.
Control option: Failsafe closed or Failsafe Open.
Includes: visual position indication and E2 volt free position open and closed feed back switches.

Ball valve: Double Union Ended
3/4 BSP thread
Bore: 20mm
Body: UPVC
Pressure: 0 to 10 Bar
Temperature rating +2°C to +90°C Max
Seal : EPDM + PTFE

Options to choose:
Failsafe Closed = Power ON will open - Power OFF will automatically close with reserve power.

Failsafe Open = Power ON will Close, Power OFF will automatically Open with reserve power.

Failsafe actuators require initial 30 second power ON when new to charge reserve power, thereafter a minimum 10 Seconds.
Will draw less than 1 Watt when powered and not moving.


Voltage: 9 to 24 volt AC/DC with multi voltage technology.

New ISO5211 10 second version has arrived with manual override, so when these are gone - they are gone.

Equivalent To

3/4 BSP UPVC motor actuated ball valve failsafe 9-24vAC/DC
