*On Sale* 1/2 BSP Brass solenoid valve 1-20 Bar 2/2 Normally Open (212240-20-0120) 12mm
£145.56
£534.53 incl. VATDescription

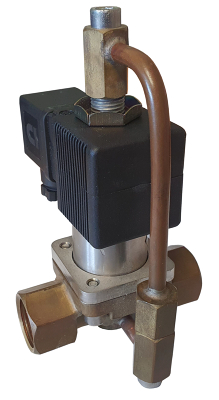

1/2 inch High pressure brass solenoid valve ERA-SIB 212240-20-0120
Function: 2/2 way normally open
Operation: Pressure assisted
Port: 1/2 BSP thread
Pressure: 1 to 20 Bar
Body: Stainless steel
Internals: Stainless steel
Seals: NBR
Media: air, water, oils and fluids under 40 CST and gases compatible with materials of construction.
Orifice: 12.0mm
Kv flow factor: 20 L/Min based on water with 1 Bar pressure difference.
Coil: 31400 14 to 20 Watt Class F DIN43650A 100% duty rated
Protection: IP65 safe area.
Voltage: 12vDC, 24vDC, 36vDC, 48vDC, 80vDC, 90vDC, 110vDC, 190vDC, 210vDC or 12vAC, 24vAC, 36vAC, 48vAC, 90vAC, 125vAC, 190vAC, 220vAC, 240vAC or 415vAC.
Technical Specification
Brand: SN ERA SIB SAS
Model: 212240-20-0120
Width: 40.00 mm
Height: 130.00 mm
Depth: 76.00 mm
Weight: 1.00 kg
Valve / Product Type: Solenoid
Body Material: Brass
Voltage: 110vAC, 110vDC, 12vDC, 230VAC, 24vAC, 24vDC, 48vAC, 48vDC
Port Size: 1/2 thread
Function: 2/2 Normally Open
Operation: Pressure Assisted
Pressure Maximum: 10 Bar, 12 Bar, 13 Bar, 14 Bar, 15 Bar, 16 Bar, 17 Bar, 18 Bar, 20 Bar
Seals: NBR
Approvals: IP65
Media: Air, Fluid (Non Aggressive), Gases (Non Aggressive), Oils + Fuels 50cSt Max, Water
Options required: Mounting Holes
Orifice: 12mm
