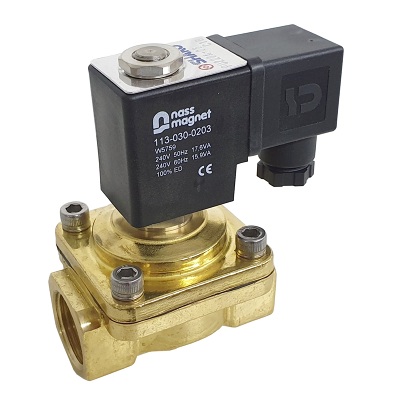

11/4 Brass solenoid valve 0-10 Bar 2/2 Normally Closed (AD35) 35mm
£260.32
£321.12 incl. VATDescription
11/4 inch Brass solenoid valve CS Fluid Power AD35
Function: 2/2 way normally closed
Operation: Assisted lift (zero rated)
Port: 11/4 BSPP option NPT or Rc thread
Pressure: 0 to 10 Bar (AC) or 7 Bar (DC voltage).
Vacuum: 10-6 torr
Body: Brass
Internals: Stainless steel
Seals: NBR standard, option EPDM, FKM, Silicone, VST, Neoprene, ECO, HNBR or Hypalon.
Media: air, water, light oils, LPG, diesel, vacuum, petrol, propane, inert gases, nitrogen, carbon dioxide, argon, oxygen, antifreeze, glycol, kerosene, fuel oil and most other non aggressive fluids under 50CST and gases that are compatible with materials of construction.
Orifice 35.0mm
Kv flow factor: 371.8 L/min based on water with 1 Bar pressure drop
Coil: WPG2 18 Watt DIN43650A Class H 100% duty rated with CE; UL; CSA and IP67 approval
Protection: IP65 LED connector (Included).
Coil Option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 (Pressure 0 to 3 Bar Max).
Voltages: 12vDC, 24vDC, 48vDC, 24vAC, 48vAC, 110vAC, 230vAC and 380vAC.
Other options: Manual Over Ride, degreased and custom made options.
Technical Specification
Brand: CS Fluid Power Co Ltd
Model: AD35
Width: 90.00 mm
Height: 140.00 mm
Depth: 120.00 mm
Weight: 2.77 kg
Valve / Product Type: Solenoid
Body Material: Brass
Voltage: 110vAC, 12vDC, 230VAC, 24vAC, 24vDC, 380vAC, 48vAC, 48vDC
Port Size: 11/4 thread
Function: 2/2 Normally Closed
Operation: Assisted Lift
Pressure Maximum: 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar
Seals: ECO, EPDM, HNBR, Hypalon, NBR, Neoprene, Silicone, FKM (Viton), VST
Approvals: ATEX Zone II GD, ATEX Exm, IP54, IP65, IP67, CSA, UL
Media: Air, Fluid (Non Aggressive), Gases (Non Aggressive), Oils + Fuels 50cSt Max, Vacuum (Low), Vacuum (Medium), Water
Options required: Degreased, Manual Override
Orifice: 35mm
