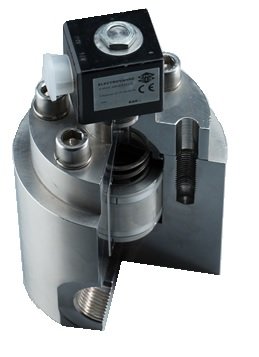

ERA SIB Solenoid Valves
.jpg)

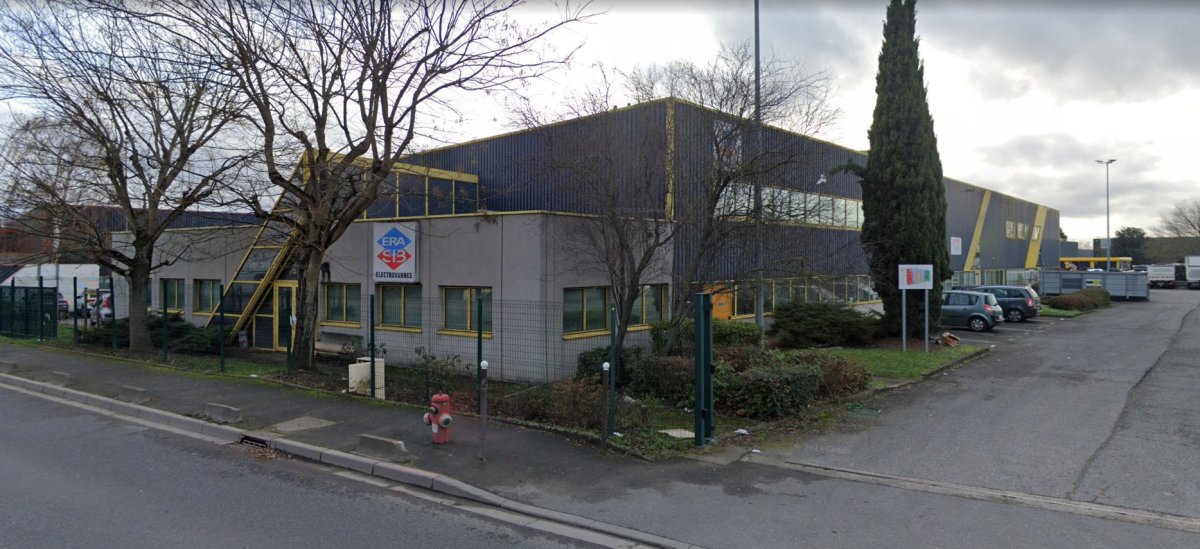

.ERA SIB
Founded in 1954 SIB (Société Industrielle de Boulogne) specializes in solenoid valves for fuel distribution and for special applications.
1961: Creation of ERA – Studies and Production of Automation.
1992: ERA buys SIB and becomes ERA SIB.
2022: AGP Group buys ERA SIB
ERA-SIB celebrated in 67th Anniversary in 2021, service, quality with innovation are more than words for ERA-SIB but are in fact the driving force of the company, they represent the commitment from all staff in the service to the distributors and customers who have been chosen by ERA-SIB as like-minded partners.
ERA-SIB offer even for the most demanding customers one of the world’s most complete solenoid valve ranges of high quality direct acting and pressure assisted solenoid valves. Brass, plastics (Polysulphone, PVC, PP, PTFE, POM and Nylon etc.), 316 Stainless Steel, and Aluminium.
ERA-SIB solenoid valves are available in all Alternating and Direct Current voltages for IP65 Safe Area and most can be fitted with hazardous area ATEX Explosion-Proof EExdIICT4 or EExdIICT6 explosion proof enclosures and ATEX EExmIIT4 encapsulated coils.
ERA-SIB range of solenoid valves is constantly supplemented with many high-pressure high flow solenoid valve models arriving in 2024–2025.
ERA-SIB will continue its commitment to developments through design, innovation and commitment to quality into the future.
"Commitment to quality" is more than just a slogan; it is a truth for all ERA-SIB's staff. For more than 60 years, ERA-SIB has been making solenoid valves to the most demanding users in Europe and Worldwide, AIR LIQUIDE, ALCATEL, BONGUARD, BURTON CORBLIN, C.E.A and COGEMA, SIEBE COMPAIR CLIMAX, GAZ DE FRANCE, ISOMATIC, SAGEM, SCHLUMBERGER, TOKHEIM-SOFITAM and WITTENBORG, etc. So many names that you will find with a lot of others in the ERA-SIB reference list.
Technical Information.
The easiest way to define a solenoid valve is to do it just in accordance with its tube and orifice size. This is a solution we have to warn the users against.
It is necessary, at the opposite, to take into account all the factors to determine the solenoid valve, this means at least:
1. The exact function of the solenoid valve and the number of flow ways.
2. Exact type of media, specific gravity and viscosity.
3. Minimum and maximum working pressure.
4. Minimum and maximum differential pressure.
5. Minimum and maximum requested flow
6. Ambient temperature.
7. Media temperature.
8. Electrical specifications.
And in general, all known information that may influence the working of the solenoid valve.
Buy ERA-SIB solenoid valves online for FedEx global delivery, or simply contact us.
Below are some of the more popular solenoid valves available, or try our valve search wizard.
| Part Numbers |
Description |
Search for ERA-SIB Valves here. |
| 215201, 220201, 225201, 235201, 215201, 220201, 225201, 235201, 245201, 252201 |
Solenoid Valve Brass 0-20 Bar 1/8-1/4 BSP 2/2 N/Open compact |
200201NO |
| 30938010-0122, 30938020-0122 | Solenoid Valve Brass 1/2 BSP 0 - 10 Bar Universal 3/2 Way |
309380-12 |
| 30638010-0142, 30638020-0142 | Solenoid Valve Brass 1/4 BSP 0-10 Bar Universal 3/2 Way |
306380 |
| 20740, 20741 | Solenoid Valve Brass 1/4 BSP 1-80 Bar N/Closed 2/2 Way |
20740-20741 |
| 21211GN, 21211GF, 21611GN, 21611GF, 22011GN, 22011GF, 22411GN, 22411GF, 23011GN, 23011GF, 24011GN014, 24011GF014, 25011GN014, 25011GF014, 27011GN014. 27011GF014 |
Solenoid Valve Brass 1/8,1/4 BSP 0 - 4 Bar EN161 |
20011GAS |
| WF0.610, WF0.810, WF0.910, WF110, WF1.210, WF1.510, WF210, WF2.210, WBF1210, |
Solenoid Valve Brass 1/8-1/4 BSP 0-200 Bar N/Open 2/2 Way |
WF |
| EN52001, EN52000 |
Solenoid Valve Brass 1/8-1/4 BSP 1-300 Bar 2/2 Way |
EN52000 |
| 30938010-0382, 30938020-0382 |
Solenoid Valve Brass 3/8 BSP 0 - 10 Bar Universal 3/2 Way |
309380-38 |
| 315201, 320201, 325201, 330201 |
Solenoid Valve Brass miniature 3/2 way 1/8-1/4 BSP port 0 - 15 Bar |
300201 |
| WP0.8-80CRYO, WP1.0-80CRYO, WP1.2-80CRYO, WP1.5-80CRYO, WP2.5-80CRYO, WP3.0-80CRYO, WP4.0-80CRYO, WP5.0-80CRYO |
Solenoid Valve Cryogenic Stainless 1/8-1/2 BSP 2/2 way 0-200 Bar |
WCRYO |
| 212256, 212257, 212258, 212259 |
Solenoid Valve Stainless 1 BSP 1-300 Bar N/Closed 2/2 Way |
212256-259 |
| 218259 821001, 218258 971001, 218257 821001, 218259 971001 |
Solenoid Valve Stainless 1 BSP 2-300 Bar N/Closed 2/2 Way |
218256-259 |
| 225256821001, 225258971001, 225257821001, 225259971001 |
Solenoid Valve Stainless 1 BSP 2-300 Bar N/Closed 2/2 Way |
225256-259 |
| 30939010-0122, 30939020-0122 |
Solenoid Valve Stainless 1/2 BSP 0 - 10 Bar Universal 3/2 Way |
309390-12 |
| 30639010-0142, 30638020-0142 |
Solenoid Valve Stainless 1/4 BSP 0 - 10 Bar Universal 3/2 Way |
306390 |
| EN52080-25 |
Solenoid Valve Stainless 1/4 BSP 0-100 Bar |
EN52080-25 |
| PREN55400 |
Solenoid Valve Stainless 1/4-3/8 BSP 10-200 Bar 2/2 Way |
PREN55400 |
| WF0.5H80, WF0.5H10, WF0.5H30, WF0.5H20, WF0.6H10, WF0.6H20, WF0.8H10, WF0.8H20, WF0.9H10, WF0.9H20, WF1H10, WF1H20, WF1H30, WF1.2H10, WF1.2H20, WF1.2H30, WF1.5H10, WF1.5H20, WF1.5H30, WF2H10, WF2H20, WF2H30, WF2.2H10, WF2.2H20, WF2.2H30, WF2.5H10, WF2.5H20, WF2.5H30 |
Solenoid Valve Stainless 1/8 & 1/4 BSP 0-300 Bar High Pressure |
WF0.6H WF0.9H WF0.5H |
| WP0.8H, WP1.0H, WP1.2H, WP1.5H, WP2.5H, WP3.0H, WP4.0H, WP5.0H, WP6.0H, WP12H |
Solenoid Valve Stainless 1/8-1/2 BSP 2/2 N/Closed 0-200 Bar |
WPH |
| W0.6H, W0.8H, W1.0H, W1.2H, W1.5H, W2.0H, W2.5H, W3.0H, W4.0H, W5.0H, W6.0H, |
Solenoid Valve Stainless 1/8-1/4 BSP 0-200 Bar N/Closed 2/2 Way |
WH |
| EN52051, EN52050 |
Solenoid Valve Stainless 1/8-1/4 BSP 0-300 Bar 2/2 Way |
EN52050-51 |
| EN52052, EN52054 |
Solenoid Valve Stainless 1/8-1/4 BSP 0-300 Bar 2/2 Way |
EN52052-54 |
| EN52080-05-85 |
Solenoid Valve Stainless 1/8-1/4 BSP 0-400 Bar 2/2 Way |
EN52081-05 |
| EN52080-06-85 |
Solenoid Valve Stainless 1/8-1/4 BSP 0-500 Bar 2/2 Way |
EN52081-06-85 |
| EN52061, EN52060 |
Solenoid Valve Stainless 1/8-1/4 BSP 2/2 Way 0-350 Bar |
EN52060-61 |
| EN52051, EN52050 |
Solenoid Valve Stainless 1/8-1/4 BSP 400 Bar N/Open 2/2 Way |
EN52090-91 |
| 30939010-0382, 30939020-0382 |
Solenoid Valve Stainless 3/8 BSP 0 - 10 Bar Universal 3/2 Way |
309390-38 |
| 220240, 220241, 220242, 220243, 220244, 220245 |
Solenoid Valves Brass 1-100 Bar N/Closed 2/2 Way |
220240 |
| 225240, 225241, 225242, 225243, 225244, 225245 |
Solenoid Valves Brass 1-100 Bar N/Closed 2/2 Way |
225240 |
| 21224010, 21224030, 21224020, 21224110, 21224130, 21224120, 21224210, 21224230, 21224220, 21224310, 21224330, 21224320, 21224410, 21224430, 21224420, 21224510, 21224530, 21224520 |
Solenoid Valves Brass 1-100 Bar N/Closed 2/2 Way Servo Assisted |
212240 |
| 220240100340, 220240300340, 220240200340, 220241100340, 220241300340, 220241200340, 220242100340, 220242300340, 220242200340, 220243100340, 220243300340, 220243200340, 220244100340, 220244300340, 220244200340, 220245100340, 220245300340, 220245200340 |
Solenoid Valves Brass 1-100 Bar N/Open 2/2 Way |
220240-0 |
| 225240, 225241, 225242, 225243, 225244, 225245 |
Solenoid Valves Brass 1-100 Bar N/Open 2/2 Way |
225240-0 |
| 21224010, 21224030, 21224020, 21224110, 21224130, 21224120, 21224210, 21224230, 21224220, 21224310, 21224330, 21224320, 21224410, 21224430, 21224420, 21224510, 21224530, 21224520 |
Solenoid Valves Brass 1-100 Bar N/Open 2/2 Way Servo Assisted |
212240-0 |
| 20624010, 20624030, 20624020, 20624110, 20624130, 20624120, 20624210, 20624230, 20624220, 20624310, 20624330, 20624320, 20624410, 20624430, 20624420, 20624510, 20624530, 20624520, 20624610, 20624630, 20624620, 20624710, 20624730, 20624720 |
Solenoid Valves Brass 1-200 Bar N/Open 2/2 Way Servo Assisted |
206244-0 |
| 212246, 212247 |
Solenoid Valves Brass 2-200 Bar N/Open 2/2 Way Servo Assisted |
212246-0 |
| 212246, 212247, 212248, 212249 |
Solenoid Valves Brass 2-300 Bar N/Closed 2/2 Way Servo Assisted |
212247 |
| 220250. 220250, 220250, 220251, 220251, 220251, 220252, 220252, 220252, 220253, 220253, 220253, 220254, 220254, 220254, 220255, 220255, 220255 |
Solenoid Valves Stainless 1-100 Bar N/Closed 2/2 Way |
220250 |
| 225250, 225250, 225250, 225251, 225251, 225251, 225252, 225252, 225252, 225253, 225253, 225253, 225254, 225254, 225254, 225255, 225255, 225255 |
Solenoid Valves Stainless 1-100 Bar N/Closed 2/2 Way |
225250 |
| 21225010, 21225030, 21225020, 21225110, 21225130, 21225120, 21225210, 21225230, 21225220, 21225310, 21225330, 21225320 + port + 1 +voltage 21225410, 21225430, 21225420, 21225510, 21225530, 21225520 |
Solenoid Valves Stainless 1-100 Bar N/Closed 2/2 Way Servo Assisted |
212250 |
| 220250, 220250, 220250, 220251, 220251, 220251, 220252, 220252, 220252, 220253, 220253, 220253, 220254, 220254, 220254, 220255, 220255, 220255 |
Solenoid Valves Stainless 1-100 Bar N/Open 2/2 Way |
220250-0 |
| 225250, 225251, 225252, 225253, 225254, 225255 |
Solenoid Valves Stainless 1-100 Bar N/Open 2/2 Way |
225250-0 |
| 20625210, 20625230, 20625220, 20625310, 20625330, 20625320, 20625410, 20625430, 20625420, 20625510, 20625530, 20625520, 20625610, 20625630, 20625620, 20625710, 20625730, 20625720, 20625881, 20625883, 20625882, 20625880, 20625981, 20625983, 20625982, 20625980 |
Solenoid Valves Stainless 1-300 Bar N/Closed 2/2 Servo Assisted |
206252 |
| 20625210, 20625230, 20625220, 20625310, 20625330, 20625320, 20625410, 20625430, 20625420, 20625510, 20625530, 20625520, 20625610, 20625630, 20625620, 20625710, 20625730, 20625720, 20625881, 20625883, 20625882, 20625880, 20625981, 20625983, 20625982, 20625980 |
Solenoid Valves Stainless 1-300 Bar N/Open 2/2 Way Servo Assisted |
206252-0 |
| 212256, 212257, 212258, 212259 |
Solenoid Valves Stainless 2-300 Bar N/Open 2/2 Way Servo Assisted |
212257-0 |
ERA SIB Solenoid Coils.
| Coil size 22 REFERENCE | VOLTAGE VOLTAGE | PUISSANCE POWER |
| 24604-2 | 12v50Hz | 6 W |
| 24604-3 | 24v50Hz | 6 W |
| 24604-4 | 48v50Hz | 6 W |
| 24604-8 | 110v50Hz | 6W |
| 24604-9 | 230v50Hz | 6W |
| 24604-10 | 400v50Hz | 6W |
| 24604-12 | 240v50Hz | 6W |
| 24604-23 | 230v50Hz | 3W |
| 24604-40 | 6Vcc/DC | 3.5W |
| 24604-42 | 12Vcc/DC | 6W |
| 24604-43 | 24Vcc/DC | 6W |
| 24604-44 | 48Vcc/DC | 6W |
| 24604-48 | 24Vcc/DC | 3W |
| 24604-70 | 24Vcc/DC | 2W |
| 24604-71 | 12Vcc/DC | 3.5W |
| COILSIZE 36(bi-voltage) | |||
| 31400-3 | 24v50Hz | 12Vcc/DC | 20VA/20W |
| 31400-4 | 48v50Hz | 24Vcc/DC | 20VA/18W |
| 31400-6 | 125v50Hz | 14W | |
| 31400-9 | 230v50Hz | 80Vcc/DC | 20VA/11W |
| 31400-11 | 110v50Hz | 48Vcc/DC | 20VA/15W |
| 31400-52 | 190Vcc/DC | 9W | |
| COILSIZE 36 HighTemperature | |||
| 12755-3 | 24v50Hz | 12Vcc/DC | 20VA/20W |
| 12755-4 | 48v50Hz | 24Vcc/DC | 20VA/18W |
| 12755-9 | 230v50Hz | 80Vcc/DC | 20VA/11W |
| 12755-11 | 110v50Hz | 48Vcc/DC | 20VA/15W |
| COIL SIZE 40 (bi-voltage ) | |||
| 10065-2 | 12v50Hz | 20VA | |
| 10065-3 | 24v50Hz | 12Vcc/DC | 20VA/20W |
| 10065-4 | 48v50Hz | 24Vcc/DC | 20VA/18W |
| 10065-9 | 230v50Hz | 80Vcc/DC | 20VA/11W |
| 10065-11 | 110v50Hz | 48Vcc/DC | 20VA/15W |
| 10065-51 | 120Vcc/DC | 17.5W | |
| 10065-52 | 190Vcc/DC | 9W | |
| COIL SIZE 30 High Temperature | |||
| 11656-3 | 24v50Hz | 8 W | |
| 11656-4 | 48v50Hz | 8 W | |
| 11656-9 | 230v50Hz | 11W | |
| COIL SIZE 40/15 (hole15mm) | ||
| CODIFICATION REFERENCE | VOLTAGE VOLTAGE | PUISSANCE POWER |
| 31037-42 | 12Vcc/DC | 13.7W |
| 31037-43 | 24Vcc/DC | 13.7W |
| 31037-44 | 48Vcc/DC | 13.7W |
| 31037-9 | 230v50Hz | 50VA/21VA |
| CODIFICATION REFERENCE | VOLTAGE VOLTAGE | PUISSANCE POWER |
| 15418-42 | 12Vcc/DC | 8W |
| 15418-43 | 24Vcc/DC | 8W |
| 15418-44 | 48Vcc/DC | 8W |
| COIL SIZE 30* | ||
| 11630-2ou/or12776-2 | 12v50Hz | 10W |
| 11630-3ou/or12776-3 | 24v50Hz | 8 W |
| 11630-4ou/or12776-4 | 48v50Hz | 8 W |
| 11630-5ou/or12776-5 | 100v50Hz | 8W |
| 11630-6ou/or12776-6 | 125v50Hz | 8W |
| 11630-7ou/or12776-7 | 208v50Hz | 8W |
| 11630-9ou/or12776-9 | 230v50Hz | 9ou/or8W |
| 11630-10ou/or12776-10 | 380v50Hz | 8 W |
| 11630-11ou/or12776-11 | 110v50Hz | 10W |
| 11630-19ou/or12776-19 | 20v50Hz | 9 W |
| 11630-42ou/or12776-42 | 12Vcc/DC | 10W |
| 11630-43ou/or12776-43 | 24Vcc/DC | 10W |
| 11630-44ou/or12776-44 | 48Vcc/DC | 10W |
| 11630-45ou/or12776-45 | 60Vcc/DC | 10W |
| 11630-47ou/or12776-47 | 80Vcc/DC | 10W |
| 11630-48ou/or12776-48 | 36Vcc/DC | 10W |
| 11630-50ou/or12776-50 | 110Vcc/DC | 10W |
| 11630-51ou/or12776-51 | 120Vcc/DC | 10W |
| 11630-52ou/or12776-52 | 210Vcc/DC | 10W |
| EXPLOSION PROOF ENCLOSURE COIL (bi-voltage) | |||
| 31208-3 | 24V50Hz | 12Vcc/DC | 20VA/14W |
| 31208-4 | 48V50Hz | 24Vcc/DC | 20VA/16W |
| 31208-9 | 230V50Hz | 110Vcc/DC | 20VA/14W |
| 31208-10 | 420V50Hz | 220Vcc/DC | 20VA/12W |
| 31208-11 | 110V50Hz | 48Vcc/DC | 20VA/12W |
| 31208-22 | 48V50Hz | 24Vcc/DC | 18VA/12W |
| 31208-52 | 400V50Hz | 190Vcc/DC | 20VA/14W |
| 31208-51 | 120Vcc/DC | 14W | |
| EXPLOSION PROOF ENCLOSURECOIL (bi-voltage) | |||
| 31284-3 | 24V50Hz | 12Vcc/DC | 20VA/14W |
| 31284-4 | 48V50Hz | 24Vcc/DC | 20VA/16W |
| 31284-9 | 230V50Hz | 110Vcc/DC | 20VA/14W |
| 31284-10 | 420V50Hz | 220Vcc/DC | 20VA/12W |
| 31284-11 | 110V50Hz | 48Vcc/DC | 20VA/12W |
| 31284-22 | 48V50Hz | 24Vcc/DC | 18VA/12W |
| 31284-52 | 400V50Hz | 190Vcc/DC | 20VA/14W |
| 31284-51 | 120Vcc/DC | 14W | |
| 31284-3 | 24V50Hz | 12Vcc/DC | 20VA/14W |
| 31284-4 | 48V50Hz | 24Vcc/DC | 20VA/16W |
| COIL CLASS m HOLE 10 | ||
| 31025-3 | 24V50Hz | 7.2VA |
| 31025-4 | 48V50Hz | 7.39VA |
| 31025-9 | 230V50Hz | 7.59VA |
| 31025-10 | 400V50Hz | 7.6VA |
| 31025-11 | 110V50Hz | 7.26VA |
| 31025-42 | 12Vcc/DC | 3.84W |
| 31025-43 | 24Vcc/DC | 4.08W |
| 31025-44 | 48Vcc/DC | 4.16W |
| 31025-51 | 120Vcc/DC | 4.2W |
| 31025-73 | 24Vcc/DC | 9W |
| 31025-74 | 24Vcc/DC | 8W |
| 31025-75 | 24Vcc/DC | 6W |
| COIL DIA.37 HOLE14 | ||
| 11809-3 | 24V50Hz | 20W |
| 11809-4 | 48V50Hz | 20W |
| 11809-9 | 230V50Hz | 19W |
| 11809-10 | 420V50Hz | 19W |
| 11809-11 | 110V50Hz | 19W |
| 11809-42 | 12Vcc/DC | 20W |
| 11809-43 | 24Vcc/DC | 20W |
| COIL CPV1 PILOT 38 | ||
| 31103-3 | 24V50HzR2A | 38W |
| 31103-4 | 48V50HzR2A/48Vcc/DC | 54W |
| 31103-9 | 230V50HzR2A/210Vcc/DC | 38W |
| 31103-10 | 420V50HzR2A | 38W |
| 31103-11 | 110V50HzR2A/110Vcc/DC | 40W |
| 31103-42 | 12V50HzR2A/12Vcc/DC | 38W |
| 31103-43 | 24Vcc/DC | 38W |
| 31103-51 | 120Vcc/DC | 36W |
