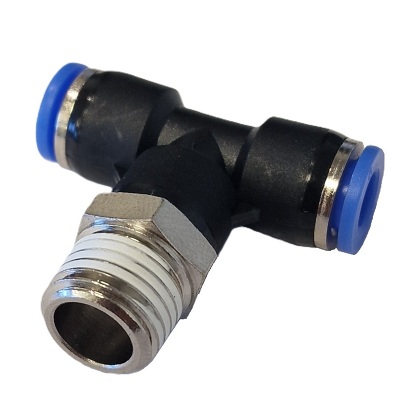

Male run T push-in airline fitting M5 up to 1/2 BSP 4mm up to 12mm (NPD)
£3.50
incl. VATDescription
S-Line Pneumatics Male Run Tee Push in model NPD
Metric Tube Sizes 4mm to 12mm, thread M5 to 1/2 BSP
One Touch push to connect configuration allow an instant tubing connection
Strong Nickel Plated Brass sleeves, strong engineered body (POM) disconnection by pressing the sleeve and then simply removing the tube from the fitting
Male thread is Teflon treated ready for use
Nickel Plated Brass and POM body ensures anti contamination
Strong mounting holes to hold fitting and tubing securely
For use in pneumatic systems upto 9 Bar with maximum temperature of 60 degrees Celsius
Technical Specification
Brand: Shako Co Ltd
Model: NPD
Width: 25.00 mm
Height: 25.00 mm
Depth: 41.00 mm
Weight: 0.04 kg
Valve / Product Type: AirLine Fittings + Tube
Body Material: Brass, Delrin (POM)
Port Size: 4mm, M5, 1/8 thread, 1/4 thread, 6mm, 8mm, 3/8 thread, 10mm, 12mm, 1/2 thread
Pressure Maximum: 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar
Seals: NBR
Media: Air, Gases (Non Aggressive), Water
