Nass Magnet Industry 4.0 Smart Connector IO-Link

The Fourth Industrial Revolution, 4AI or Industry 4.0 concept based on rapid technological changes within all industries, patterns and processes. We are experiencing fundamental changes in global production and supply, through ongoing automation of what were traditional manufacturing and industrial processes that now utilise more modern smart technology.

M2M machine to machine and IoT internet communication and monitoring systems now allow for automated control and monitoring to reduce costs whilst increasing production and more importantly monitor machine functionality to provide total reliability with no unexpected downtime.

IO-Link benefits at a glance.

• IO-Link is a communication standard that can be integrated worldwide and independent of the field bus (according to the IEC 61131-9 standard)

• Data storage, parameterisation, extended diagnostics, reduced cabling possible

• Cost reduction of downtime and maintenance

• Transparent representation of the IO-Link system down to the lowest field level

• Availability of process, service and event data

• Identical structure of all IODD files of the master

• manufacturers for user-friendly and easy operation

• Reduced or simplified cabling of the system

• Simplified programming and more options for configuring devices during operation through ISDU (Index Service Data Unit)

Nass Magnet IIot Ethernet Master.

The digitalisation and automation of industrial production is progressing. Making an innovative step, Nass Magnet, as an expert in modular and compact electromagnetic components, presents the new 4-port Ethernet IO-Link Master, focused on Industry 4.0 and IIoT, implemented in a new designed housing.

Connected sensors and solenoid valves can be remotely controlled and monitored via the network using Ethernet TCP/IP interface.

IIoT Master all data is easily collected and transmitted to the IT/Cloud where all data can be evaluated, monitored and stored.

The JSON interface that utilises the new "JSON Integration for IO-Link" specification allows for simple and total control and is fully compatible with all JSON compatible software.

Read more about Nass Magnet IIot Master

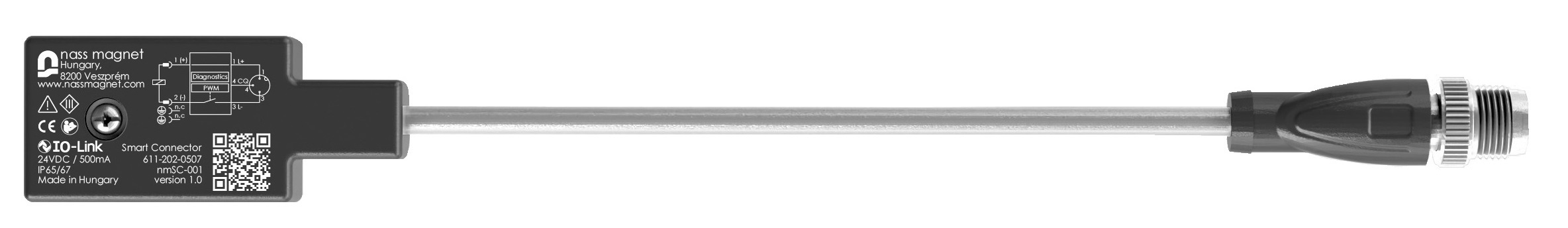

Nass Magnet Form A (DIN EN 175301-803) Smart Connector

Nass Magnet Smart Connector Experts present an innovative solenoid valve driver and monitoring device with IO-Link interface, where connected valves can be remotely controlled and monitored via the network.

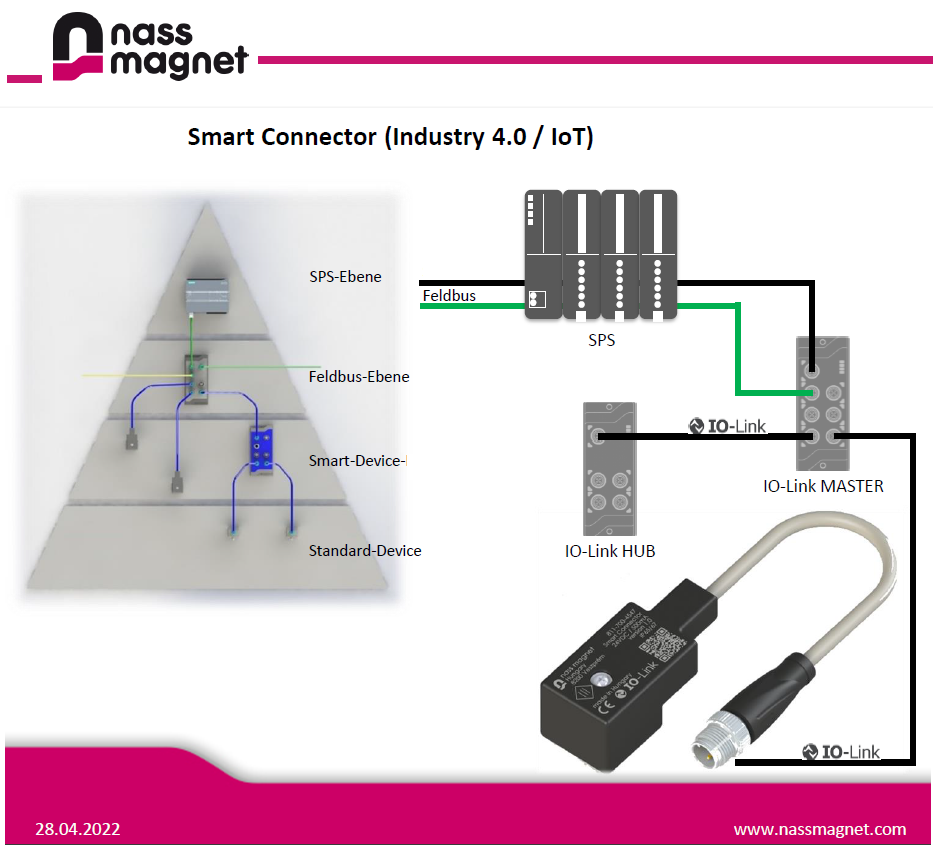

In combination with the IIot Master diagnostic data from the Form A connector can be monitored and connected to cloud based systems.

1. Smart Data transfer

2. Integrated switching cycle counter

3. Industry 4.0 preventative Maintenance>> Repair or replace before a failure.

4. PWM Mode (Pulse Width Modulation) Reduce power consumption.

5. Diagnostic Data>> Supply voltage, Output Current, Load Resistance, Power Consumption, Temperature and Switch On Time.

6. Multicolour LED>> different output states, seven different colour LED's, find me mode for maintenance and service

Data sheet, Nass Magnet Smart Connector

Read more about Nass Magnet Smart Connector

Innovation by Nass Magnet
