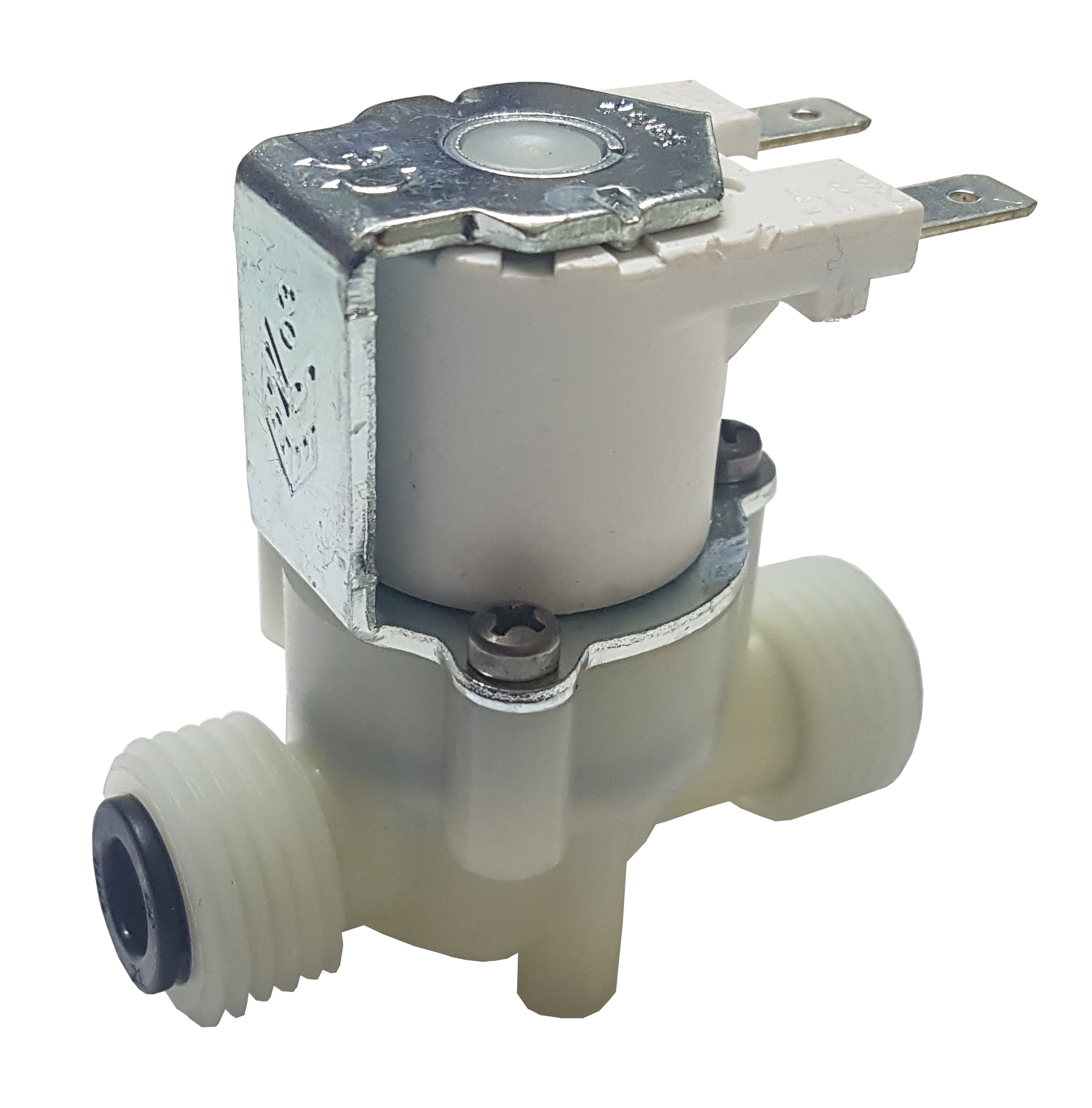

8mm Push Fit Plastic water solenoid valve 0.2-10 Bar 2/2 normally closed (1145BC)

Description

8mm quick coupling plastic water solenoid valve WRAS approved RPE R Mini 1145BC
Function: 2/2 way normally closed
Operation: Pressure assisted (Min 0.2 Bar pressure differential)
Port: 8mm speed fit / quick coupling
Pressure: 0.2 to 10 Bar
Orifice: 11.0mm
Kv flow factor: 17.57 L/min based on water with 1 Bar pressure drop.
Body: Nylon white good grade 30% Glass Filled
Seals: NBR, option EPDM
Media Temperature: +60°C (100% duty rating), +90°C (3 min ON - 5 min off)
Ambient temperature: +60°C Max
Coil:
12vAC 50Hz Holding 5VA 429mA, Inrush 5.9VA 490mA
12vAC/DC 50Hz Holding 4.4VA 365mA, Inrush 5.2VA, DC 8.5 Watts
12vDC 5.4 Watts 450mA
24vAC 50Hz Holding 7.2VA 302mA, Inrush 8.1VA 337mA
24vDC 6.3 Watts 265mA
110vAC 50Hz Holding 5VA 70mA, Inrush 8.8VA 80VA
220/240vAC 50Hz Holding 6.6VA 29.7mA, Inrush 7.6VA 33mA

Coil option: Low power 12vDC 3.2 Watt or 24vDC 3.6 Watt IP00 with faston tag Glass F
Electrical connection: faston tags 6.3x0.8mm, (option flying lead wires)
Voltage: 12vDC, 12vAC/DC, 24vDC, 12vAC, 24vAC, 110vAC or 220/240vAC

Approvals: WRAS, KTW and DM174 for drinking water production, transfer and storage, ACS health compliance certificate, ENEC European Norms Electrical Certification, CSV (European Union Aviation Safety Agency), MOCA FCM (Food Contact Materials), NSF food certification for public health protection and option for UL Underwriter Laboratories certified.

The RPE R Mini 1145 water solenoid valve is ideal for most water inlet systems, drinking water applications, electrical taps and washing machine water systems.
