*On Sale* 1/4 BSP stainless solenoid valve 0-13 Bar EPDM 2/2 Normally Closed (24033-30-0141) 4mm
£46.20
£242.76 incl. VATDescription

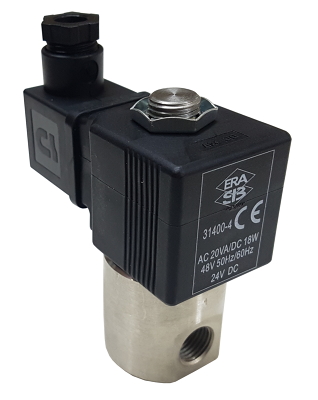

1/4 BSP Stainless solenoid valve model ERASIB model 24033.
Function: 2/2 way normally closed
Operation: direct acting
Port: 1/4 BSPP
Body: 303 stainless steel
Internals: stainless steel
Pressure: 0 to 13 Bar according to coil power and voltage
Orifice: 4mm.
Flow: 5.5 L/Min according to orifice, based on water with 1 Bar pressure drop.
Temperature: -10 to +100°C Max
Sealing: EPDM
Media: air, water, light oils, vacuum and most other fluids under 50CST and gases compatible with materials of construction.
Coil: 11630 10 Watt IP65 CE approved Class F 100% duty rated DIN43650A
Coil: 31400 14-20 Watt IP65 CE approved Class F 100% duty rated DIN43650A
Protection: IP65 with connector (Included)
Voltage: 12vDC, 24vDC, 48vDC or 24vAC, 48vAC, 110vAC or 230vAC.
Technical Specification
Brand: SN ERA SIB SAS
Model: 2403330-0141
Width: 36.00 mm
Height: 76.50 mm
Depth: 36.00 mm
Weight: 0.50 kg
Valve / Product Type: Solenoid
Body Material: Stainless Steel
Voltage: 110vAC, 12vDC, 230VAC, 24vAC, 24vDC, 48vAC, 48vDC
Port Size: 1/4 thread
Function: 2/2 Normally Closed
Operation: Direct Acting
Pressure Maximum: 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar, 12 Bar, 13 Bar
Seals: EPDM
Approvals: IP65
Media: Air, Fluid (Non Aggressive), Fluid (Slight Acid/Alkali), Gases (Non Aggressive), Gases (Slight Acid/Alakli), Water
Options required: Mounting Holes
Orifice: 4.0mm
