1/8 1/4 Stainless solenoid valve 0-30 Bar 2/2 N/Closed
£53.66
£73.18 incl. VATDescription

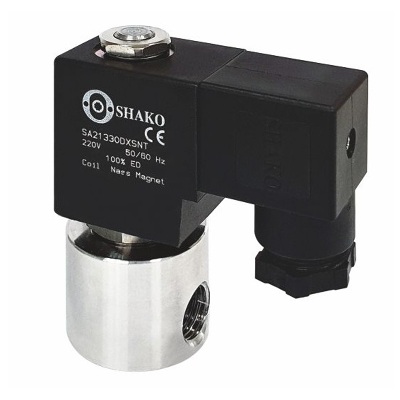

Stainless steel solenoid valve Compact Economy series JA
Port: 1/8 or 1/4 BSPT, option NPT or Rc thread
Mounting holes: M5
Function: 2/2 Way Normally Closed
Operation: Direct acting
Body: AISI303 stainless steel
Internals: stainless steel
Pressure: 0 to 30 Bar according to orifice, voltage (AC or DC) and coil power (10W or 18W)
Media Temperature: +50°C NBR, +80°C FKM or +120°C EPDM and PTFE seals
Orifice: 1.6mm (JAB), 2.4mm (JAC), 3.2mm (JAD) or 4.0mm (JAE) - 1.2 +5mm available as special request.
Kv flow factor: 1.43 to 7.15 L/min according to orifice, based on water with 1 Bar pressure drop.
Opening/closing time: 10-20 milliseconds Max
Seals: FKM standard options EPDM, NBR or PTFE.
Media: air, water, light oils, vacuum and most other fluids under 40 CST and gases compatible with materials of construction.
Coil: 10 Watt IP65 Class F DIN43650A 100% duty rated.
Coil: 14-20 Watt IP65 Class F DIN43650A 100% duty rated for higher working pressures.
Protection: IP65 with connector (Included) - Option 30cm lead wire coil.
Voltage: 12vDC, 24vDC, 24vAC, 110vAC or 230vAC, other options 48vDC, 80vDC, 190vDC, 12vAC, 48vAC etc available upon request
Weight: 280g (with coil + connector)
Example JA2BV is a 1/4\BSP valve, FKM seal, 1.6mm orifice, 0 to 20 Bar AC 10 Watt coil or 0 to 30 Bar AC high power 14-20 Watt coil.
One of our most popular small, cost-effective quality stainless steel solenoid valves suitable for so many applications.
Plunger seal kits available, EVB22000JA + seal material NBR, EPDM, FKM or PTFE
Technical Specification
Brand: Shako Co Ltd
Model: JA
Width: 30.00 mm
Height: 76.00 mm
Depth: 30.00 mm
Weight: 0.40 kg
Valve / Product Type: Solenoid
Body Material: Stainless Steel
Voltage: 110vAC, 12vDC, 200vDC, 230VAC, 24vAC, 24vDC, 48vAC, 48vDC
Port Size: 1/4 thread, 1/8 thread
Function: 2/2 Normally Closed
Operation: Direct Acting
Pressure Maximum: 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar, 12 Bar, 13 Bar, 14 Bar, 15 Bar, 16 Bar, 17 Bar, 18 Bar, 20 Bar, 25 Bar, 30 Bar
Seals: EPDM, NBR, PTFE (Teflon), FKM (Viton)
Approvals: IP65
Media: Air, Fluid (Non Aggressive), Fluid (Slight Acid/Alkali), Gases (Non Aggressive), Gases (Slight Acid/Alakli), Oils + Fuels 50cSt Max, Vacuum (Low), Vacuum (Medium), Water
Options required: Mounting Holes
Orifice: 1.6mm, 2.4mm, 3.0mm, 4.0mm
