WRAS Approved Actuated Ball Valve Motorised.

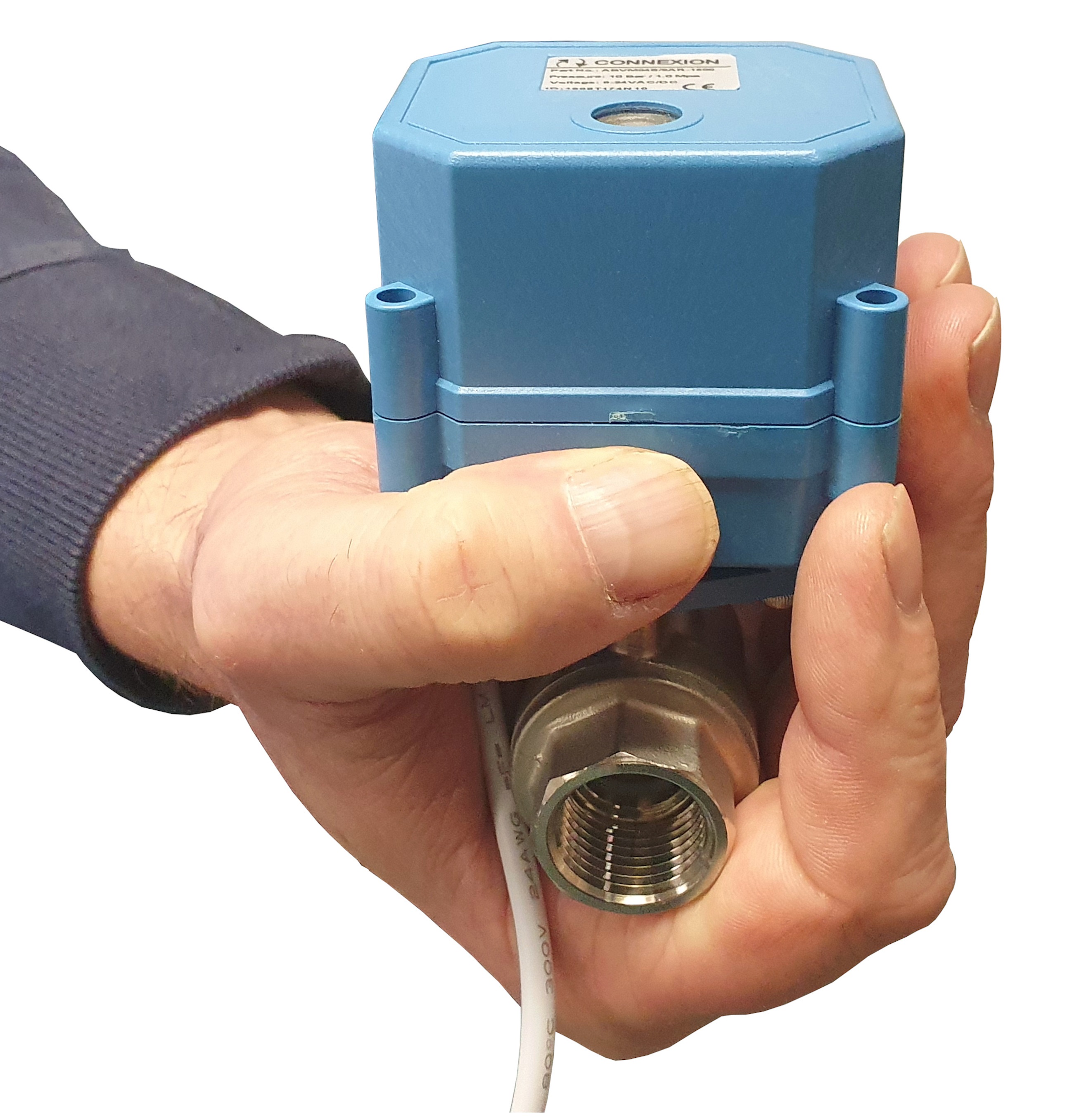

The ABVM Motor Actuated WRAS Approved Ball Valve Mini series, WRAS certificate number 2010303.
United Kingdom - ABVM is a registered trademark of Connexion Developments Ltd (Registration No. 3579800)
ABVM Technical Features
Cycle life: 100,000 open/close (100% duty rated*)
Power: 9-24 volt (1 to 1.2 Watts, 50 - 130mA), 110-240 volt (2 to 5 Watts, 50 - 100mA).
Open or close time: 9â24 volt Open 4 seconds / Close 4 seconds, 110â240 volt Open 4 seconds / Close 6 seconds.
Protection: IP67
Temperature: -15°C to +50°C ambient.
Voltage: 9 to 24 volt AC/DC (9-35 volt manual override version) or 110 to 240 volt AC with multi voltage technology
Includes: visual position indication. Control options: Failsafe Closed, Failsafe Open, Power Open/Power Close and Modulating.
Ball Valve: WRAS approved certificate number 2010303 1/4 to 1" BSP thread, option NPT thread (Special option 11/4 BSP) Bore: Full bore Body: 304 stainless steel (Special option Brass)
Pressure: 0 to 10 Bar
Seals: PTFE Temperature: -15°C to +100°C.
Media: air, water, oil and fluids and gases compatible with 304 stainless steel and PTFE.
Options to choose.
1. Failsafe Closed = Power ON will OPEN - Power OFF will automatically CLOSE with reserve power. (2 wire)
2. Failsafe Open = Power ON will CLOSE - Power OFF will automatically OPEN with reserve power. (2 wire) Failsafe: Requires 15 second power ON when out of the box to charge or after 24 hours, thereafter minimum 10 second power ON when energised for recharging.
3. Power Open/Close = connect RED +ve and BLACK -ve wires, GREEN wire is the control wire. (3 wire) Power to GREEN valve opens or power off valve closes.
4. Control voltage: Low voltage any voltage AC or DC 9 volt through to 24 volts or high voltage 110 volts AC through to 240 volt AC
5. Modulating control for precise flow control of fluids, 0-20mA, 0-10 volt or 0 to 5 volt (Complete with position feed back signal)
Other Options. Manual Override = Button Lift + Twist will open/close valve and disengage motor, push back down to re-engage motor. Available low voltage models 9 to 24 volts only E2 Position Switches = Position OPEN and CLOSED volt free feed back (no voltage supplied from actuator). E2 switch rating 0 to 36vDC 0.4 Amp Max.
*The duty rating of the valve is given as 100%. Failsafe model require 30 seconds power on for first use or after 24 hours, thereafter can be powered to move every 11 seconds (5 seconds move + min 6 seconds recharge).
