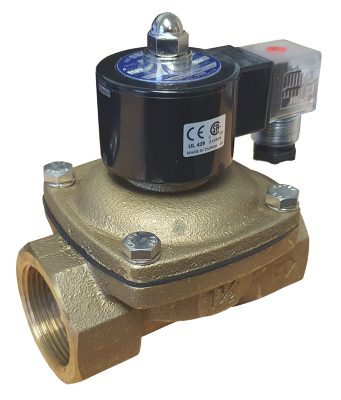

*On Sale* 11/2 BSP Brass solenoid valve 0-7 Bar 2/2 way Normally Closed (UW40) 40mm
£127.07
£315.72 incl. VATDescription
11/2 inch Bronze Solenoid Valve Normally Closed UW40
Function: 2/2 way normally closed
Operation: assisted lift (zero rated)
Port: 11/2 BSP
Pressure: 0 to 7 Bar (AC), 0 to 5 Bar (DC Voltage)
Body: Bronze
Internals: stainless steel
Seals: NBR
Media: air, water, light oils, vacuum 10ˉ³, other fluids under 20CST and gases compatible with materials of construction.
Orifice: 40.0mm
Kv flow factor: 400.4 L/min based on water with 1 Bar pressure drop.
Coil: WPC2 type S 29 Watt Class F DIN43650A IP65 UL CE approved 90% duty rated.
Protection: IP65 with connector (Included)
Voltage: 24vDC, 24vAC (with rectified connector), 110vAC or 230vAC
Technical Specification
Brand: Di-Hen miT-UniD-cns
Model: UW40-NBR
Width: 80.00 mm
Height: 118.00 mm
Depth: 125.00 mm
Weight: 2.53 kg
Valve / Product Type: Solenoid
Voltage: 110vAC, 230VAC, 24vAC, 24vDC
Port Size: 11/2 thread
Function: 2/2 Normally Closed
Operation: Assisted Lift
Pressure Maximum: 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar
Seals: NBR
Approvals: IP54, IP65, UL
Media: Air, Fluid (Non Aggressive), Gases (Non Aggressive), Oils + Fuels 50cSt Max, Vacuum (Low), Water
Orifice: 40mm
Body Material: Brass, Bronze
