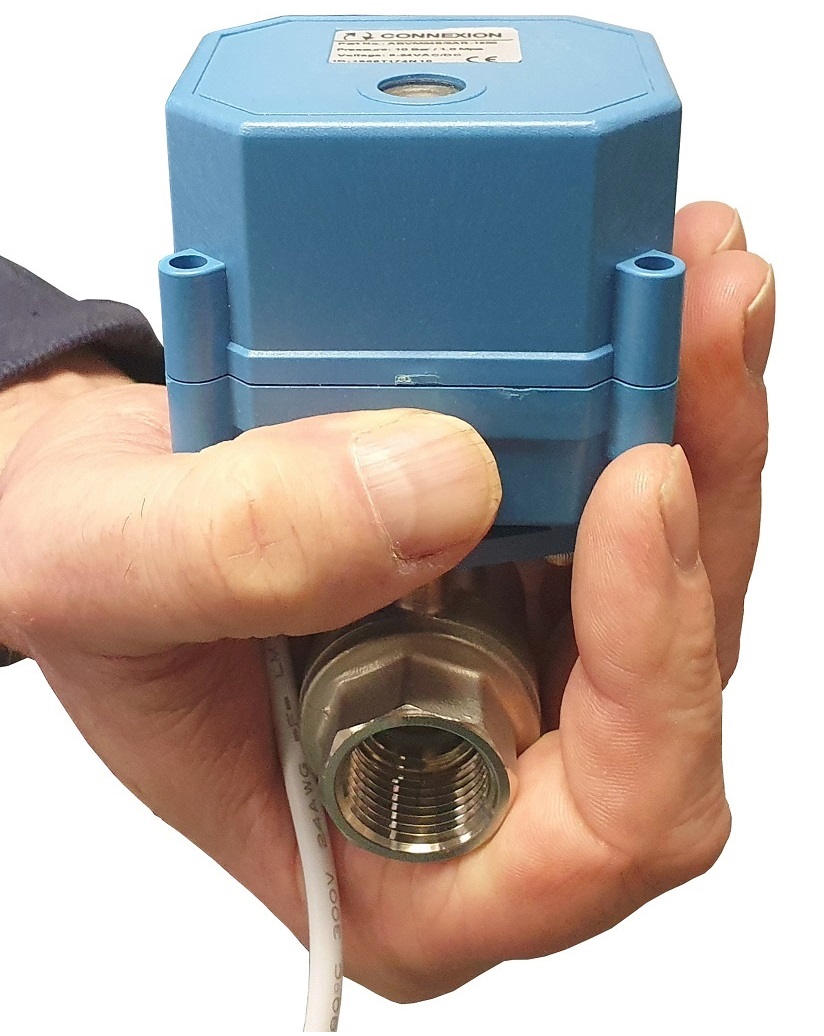

1/2 Electric actuated WRAS ball valve ABVM04S

1/2 BSP mini ABVM04S electric actuated WRAS approved ball valve with visual position indicator.

Control options Failsafe Closed, Failsafe Open or Power Open/Power Close.

The Low power 5 watt 5 second IP67 mini actuators voltage options 9 to 24 volt AC or DC (9) and 110 to 240vAC (2). Full flow 304 stainless steel ball valve, Pressure 0 to 10 Bar, Temperature -15C to +100C, Seals PTFE.

The worlds most compact, eco friendly 2 Watt, WRAS approved, cost effective, reliable 100,000 cycle IP67 Miniature motor actuated stainless steel full flow ball valves from 1/4 to 1 inch thread.

Options to choose.

Failsafe Closed - Power ON will OPEN - Power OFF will automatically CLOSE with reserve power. (ABVM04S/9AR and ABVM04S/2AR)

Failsafe Open - Power ON will CLOSE - Power OFF will automatically OPEN with reserve power. (ABVM04S/9AR-NO and ABVM04S/2AR-NO)

Failsafe: Requires 15 second power ON when out of the box to charge, thereafter min 10 second power ON when energised for recharging. Will draw less than 1 Watt when powered and not moving.

Power Open/Close - connect RED +ve and BLACK -ve wires, GREEN wire is control wire to power open or power off close. (ABVM04S/9 and ABVM04S/2)

Manual Over Ride = Button Lift + Twist will open/close valve and disengage motor, push back down to reengage motor. Available 9-24 volt only (ABVM04S/9AR-MO, ABVM04S/9-MO)

Position Switches = volt free position CLOSED and OPEN feed back. (ABVM04S/9AR-E2, ABVM04S/2AR-E2, ABVM04S/9-E2 and ABVM04S/2-E2)

3/4 Electric actuated WRAS ball valve ABVM06S

3/4 BSP mini ABVM06S electric actuated WRAS approved ball valve with visual position indicator.

Control options Failsafe Closed, Failsafe Open or Power Open/Power Close.

The Low power 5 watt 5 second IP67 mini actuators voltage options 9 to 24 volt AC or DC and 110 to 240vAC. Full flow 304 stainless steel ball valve, Pressure 0 to 10 Bar, Temperature -15C to +100C, Seals PTFE.

Options to choose.

Failsafe Closed - Power ON will OPEN - Power OFF will automatically CLOSE with reserve power. (ABVM06S/9AR and ABVM06S/2AR)

Failsafe Open - Power ON will CLOSE - Power OFF will automatically OPEN with reserve power. (ABVM06S/9AR-NO and ABVM06S/2AR-NO)

Failsafe: Requires 15 second power ON when out of the box to charge, thereafter min 10 second power ON when energised for recharging. Will draw less than 1 Watt when powered and not moving.

Power Open/Close - connect RED +ve and BLACK -ve wires, GREEN wire is control wire to power open or power off close. (ABVM06S/9 and ABVM06S/2)

Manual Over Ride = Button Lift + Twist will open/close valve and disengage motor, push back down to reengage motor. Available 9-24 volt only (ABVM06S/9AR-MO, ABVM06S/9-MO)

Position Switches = volt free position CLOSED and OPEN feed back. (ABVM06S/9AR-E2, ABVM06S/2AR-E2, ABVM06S/9-E2 and ABVM06S/2-E2)

1 inch Electric actuated WRAS ball valve ABVM08S

1 BSP mini ABVM08S electric actuated WRAS approved ball valve with visual position indicator.

Control options Failsafe Closed, Failsafe Open or Power Open/Power Close.

The Low power 5 watt 5 second IP67 mini actuators voltage options 9 to 24 volt AC or DC and 110 to 240vAC. Full flow 304 stainless steel ball valve, Pressure 0 to 10 Bar, Temperature -15C to +100C, Seals PTFE.

Options to choose.

Failsafe Closed - Power ON will OPEN - Power OFF will automatically CLOSE with reserve power. (ABVM08S/9AR and ABVM08S/2AR)

Failsafe Open - Power ON will CLOSE - Power OFF will automatically OPEN with reserve power. (ABVM08S/9AR-NO and ABVM08S/2AR-NO)

Failsafe: Requires 15 second power ON when out of the box to charge, thereafter min 10 second power ON when energised for recharging. Will draw less than 1 Watt when powered and not moving.

Power Open/Close - connect RED +ve and BLACK -ve wires, GREEN wire is control wire to power open or power off close. (ABVM08S/9 and ABVM08S/2)

Manual Over Ride = Button Lift + Twist will open/close valve and disengage motor, push back down to reengage motor. Available 9-24 volt only (ABVM08S/9AR-MO, ABVM08S/9-MO)

Position Switches = volt free position CLOSED and OPEN feed back. (ABVM08S/9AR-E2, ABVM08S/2AR-E2, ABVM08S/9-E2 and ABVM08S/2-E2)

11/4 Electric actuated WRAS ball valve ABV12S

11/4 BSP motor actuated stainless steel ball valve ABV12S-E2-MO.

 Actuator:

Torque: 15NM (20NM Break), Cycle life: 70,000 open/close, Power: 22 Watts 1 Amp Max, Open or close time: 10 seconds, Protection: IP67, Mounting: ISO5211 F03 + F05, Temperature: -15°C to +60°C ambient, Voltages 12vDC-24vDC-24vAC or 110-240vAC with multi voltage technology.

Control options: Failsafe closed, Failsafe Open or Power Open/Power Close.

Includes:Visual position indication, Manual Over Ride (with allen key provided), E2 position feed back switches. (Volt free, no voltage is supplied from the actuator. 36vDC, 0.4 Amp Max).

Ball valve:

11/4 BSP thread, option NPT thread, Bore: 32mm, Body: 304 stainless steel, Pressure: 0 to 10 Bar, Temperature rating: 0 to +90°C Max, Seals: PTFE WRAS Approved, Media: air, water, oil and fluids and gases compatible with 304 stainless steel and PTFE.

Options to choose:

a. Failsafe Closed = Power +ve Red; -ve Black valve will open, Power OFF will automatically close with reserve power.

b. Failsafe Open = Power +ve Red and -ve Black valve will Close, Power OFF will automatically Open with reserve power.

Failsafe actuators require initial 30 second power ON when new to charge reserve power, thereafter a minimum 10 Seconds.Will draw less than 1 Watt when powered and not moving. E2 volt free open + closed position feedback 3 wires (Green + Yellow and common White)

c. Power Open/Power Close = Connect Red +ve and Black -ve, Green is the control wire.Power to GREEN valve opens, remove power from GREEN valve closes. E2 volt free open + closed position feedback 4 wires (Blue + Grey and Yellow + White)

11/2 Electric actuated WRAS ball valve ABV14S

11/2 BSP motor actuated stainless steel ball valve ABV14S-E2-MO.

Actuator:

Torque: 15NM (20NM Break), Cycle life: 70,000 open/close, Power: 22 Watts 1 Amp Max, Open or close time: 10 seconds, Protection: IP67, Mounting: ISO5211 F03 + F05, Temperature: -15°C to +60°C ambient, Voltages 12vDC-24vDC-24vAC or 110-240vAC with multi voltage technology.

Control options: Failsafe closed, Failsafe Open or Power Open/Power Close.

Includes:Visual position indication, Manual Over Ride (with allen key provided), E2 position feed back switches. (Volt free, no voltage is supplied from the actuator. 36vDC, 0.4 Amp Max).

Ball valve:

11/2 BSP thread, option NPT thread, Bore: 40mm, Body: 304 stainless steel, Pressure: 0 to 10 Bar, Temperature rating: 0 to +90°C Max, Seals: PTFE WRAS Approved, Media: air, water, oil and fluids and gases compatible with 304 stainless steel and PTFE.

Options to choose:

a. Failsafe Closed = Power +ve Red; -ve Black valve will open, Power OFF will automatically close with reserve power.

b. Failsafe Open = Power +ve Red and -ve Black valve will Close, Power OFF will automatically Open with reserve power.

Failsafe actuators require initial 30 second power ON when new to charge reserve power, thereafter a minimum 10 Seconds.Will draw less than 1 Watt when powered and not moving. E2 volt free open + closed position feedback 3 wires (Green + Yellow and common White)

c. Power Open/Power Close = Connect Red +ve and Black -ve, Green is the control wire.Power to GREEN valve opens, remove power from GREEN valve closes. E2 volt free open + closed position feedback 4 wires (Blue + Grey and Yellow + White)

2 inch Electic actuated WRAS ball valve ABV20S

2 BSP motor actuated stainless steel ball valve ABV20S-E2-MO.

Actuator: Torque: 15NM (20NM Break), Cycle life: 70,000 open/close, Power: 22 Watts 1 Amp Max, Open or close time: 10 seconds, Protection: IP67, Mounting: ISO5211 F03 + F05, Temperature: -15C to +60C ambient, Voltages 12vDC-24vDC-24vAC or 110-240vAC with multi voltage technology.

Control options: Failsafe closed, Failsafe Open or Power Open/Power Close.

Includes:Visual position indication, Manual Over Ride (with allen key provided), E2 position feed back switches. (Volt free, no voltage is supplied from the actuator. 36vDC, 0.4 Amp Max).

Ball valve:

2 BSP thread, option NPT thread, Bore: 50mm, Body: 304 stainless steel, Pressure: 0 to 10 Bar, Temperature rating: 0 to +90°C Max, Seals: PTFE WRAS Approved, Media: air, water, oil and fluids and gases compatible with 304 stainless steel and PTFE.

Options to choose:

a. Failsafe Closed = Power +ve Red; -ve Black valve will open, Power OFF will automatically close with reserve power.

b. Failsafe Open = Power +ve Red and -ve Black valve will Close, Power OFF will automatically Open with reserve power.

Failsafe actuators require initial 30 second power ON when new to charge reserve power, thereafter a minimum 10 Seconds.Will draw less than 1 Watt when powered and not moving. E2 volt free open + closed position feedback 3 wires (Green + Yellow and common White)

c. Power Open/Power Close = Connect Red +ve and Black -ve, Green is the control wire.Power to GREEN valve opens, remove power from GREEN valve closes. E2 volt free open + closed position feedback 4 wires (Blue + Grey and Yellow + White)



UPVC Electric actuated ball valves ABVP

1/2 up to 2 inch motor actuated UPVC ball valve ABVP-MO.

Actuator: Torque: 15NM (20NM Break), Cycle life: 70,000 open/close, Power: 22 Watts 1 Amp Max, Open or close time: 10 seconds, Protection: IP67, Mounting: ISO5211 F03 + F05, Temperature: -15°C to +60°C ambient, Voltages: 12vDC-24vDC-24vAC or 110-240vAC with multi voltage technology.

Control options: Failsafe closed, Failsafe Open or Power Open/Power Close.

Includes:Visual position indication, Manual Over Ride (with allen key provided) + E2 position feed back switches. Volt free, no voltage is supplied from the actuator. Rated voltage 36vDC, 0.4 Amp Max.

Ball valve:

Double Union Ended 1/2, 3/4, 1, 11/4, 11/2 or 2" BSP thread, option NPT or metric solvent ends. Bore: Full bore 15 to 50mm according to port size, Body: UPVC, Pressure: 0 to 10 Bar, Temperature rating +2°C to +90°C Max, Seals: PTFE with EPDM, option PTFE with FKM, Media: air, water, oil, fluids and gases compatible with materials of construction.

Options to choose:

a. Failsafe Closed = Power +ve Red and -ve Black valve will open - Power OFF valve will automatically close with reserve power.

b. Failsafe Open = Power +ve Red and -ve Black valve will Close, Power OFF will automatically Open with reserve power.

Failsafe actuators require initial 30 second power ON when new to charge reserve power, thereafter a minimum 10 Seconds.Will draw less than 1 Watt when powered and not moving. E2 volt free open + closed position feedback 3 wires (Green/Yellow/White)c.

Power Open/Power Close = Connect Red +ve and Black -ve, Green is the control wire. Power +ve to GREEN valve opens or remove power from GREEN valve closes. E2 volt free open + closed position feedback 4 wires (Blue+Grey and Yellow+White)

You can view all of the motor actuated ball valves here, including WRAS approved valves, 3 piece stainless steel ball valves and modulating control electrically actuated ball valves.
